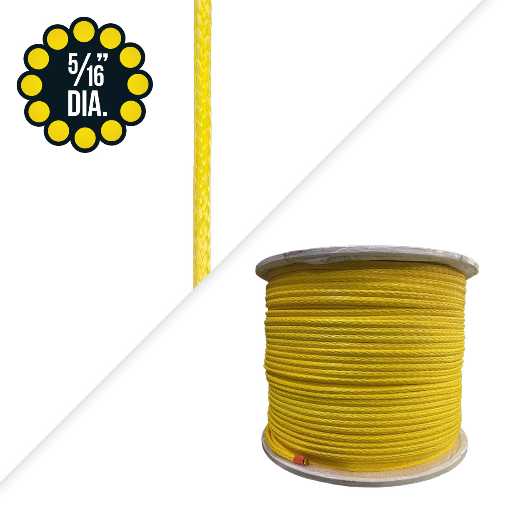

5/16" Proline12™ Dyneema Rope (UHMPE)

Manufacturer: Lift-It

PROLINE12™ Ultra High Molecular Weight Polyethylene (UHMWPE), also known as HMPE (High Modulus PolyEthylene). UHMWPE Ropes are valued for their performance in vehicle recovery, industrial & marine applications, performance yachting, aquaculture, commercial fishing, and PROLINE12™ can be the ideal substitute for wire rope. PROLINE12™ UHWMPE ropes have long been used for mooring of Tanker vessels, as pennant lines for offshore rigs, tow hawsers, ship assist lines and more.

More...

Shop available products below Shop all 0types

From $0.93

Overview
Specifications
Product Resources
Contact Us

UHMWPE ropes are 7-9 times stronger than steel (by weight) and 3 times stronger than Polyester of equal weight. PROLINE12^TM 12-strand torque-free braided construction gives UHWMPE rope superior strength, very low stretch, improved handling and excellent wear characteristics. UHMPE rope is naturally white, when coated with Polyurethane the rope is enhanced with inherent UV and abrasion resistance, increasing service life.

The many advantages of PROLINE12^TM UHMPE rope make it an excellent choice for all load handling, winch line, recovery and marine towing line applications. PROLINE12™ is a great choice as they do not recoil or whiplash like wire rope and chain slings when they fail. Wire has, can and will have deadly affects when catastrophic failure occurs.

PROLINE12X12^TM UHMWPE ropes offer all of the benefits of PROLINE12^TM 12 Strand rope, with improved load balance throughout the rope fibers when constructed in larger diameters. To maximize efficiency on larger diameters/capacities, each of the 12 major strands is made up of 12 minor strands, providing users with an exceptionally strong, balanced and lightweight rope that offers excellent torque-free load handling characteristics.

Many of the largest mining operations in the world trust PROLINE12X12^TM UHMWPE ropes to recover haul trucks and other equipment quickly and efficiently. We stock a large inventory of all PROLINE12X12^TM sizes and have skilled personnel to handle emergency jobs to keep operations going, living up to our reputation of 24/7/365 service.

PROLINE12X12^TM UHMPE ropes bring the oldest form of rigging to the forefront of technological advancement. Whether you are rigging, recovering or towing, choose PROLINE12X12^TM UHMPE ropes.

PROLINE12™ Rope Specifications
Diameter		Minimum Breaking Strength (Lbs.)		Minimum Breaking Strength (Kgs.)		Weight		Price
(Inch)	(mm)	Spliced	Unspliced*	Spliced	Unspliced*	(Lbs./100ft)	(Kgs./100m)	Cost per foot
5/64	2	750	830	340	376	.17	.25	call for pricing
1/8	3	2,800	3,100	1,270	1,406	.34	.50	call for pricing
3/16	5	5,500	6,100	2,495	2,767	1.01	1.50	call for pricing
1/4	6	8,000	8,890	3,630	4,033	1.55	2.30	0.58
5/16	8	11,700	13,000	5,307	5,897	2.69	4.00	0.93
3/8	9	17,500	19,400	7,938	8,800	4.10	6.10	1.45
7/16	11	21,000	23,400	9,526	10,614	4.20	6.30	1.67
1/2	12	31,300	34,800	14,198	15,785	6.32	9.40	2.05
9/16	14	37,900	42,100	17,191	19,097	9.08	13.50	3.12
5/8	16	51,400	57,100	23,315	25,900	11.36	16.90	3.62
3/4	18	68,500	76,300	31,072	34,610	14.72	21.90	4.30
13/16	20	74,000	82,200	33,566	37,286	15.59	23.20	call for pricing
7/8	22	92,600	102,900	42,003	46,675	20.44	30.40	6.60
1	24	110,000	122,100	49,896	55,385	25.14	37.40	7.92
1-1/16	26	129,200	143,500	58,605	65,092	25.80	38.40	call for pricing
1-1/8	28	147,000	163,300	66,680	74,073	29.90	44.50	9.17
1-1/4	30	165,000	183,100	74,844	83,054	34.00	50.60	12.13
1-5/16	32	196,000	217,800	88,906	98,794	38.64	57.50	call for pricing
1-1/2	36	221,000	245,500	100,246	111,359	43.55	64.80	16.58

PROLINE12X12™ Rope Specifications
Diameter		Minimum Breaking Strength (Lbs.)		Minimum Breaking Strength (Kgs.)		Weight		Price
(Inch)	(mm)	Spliced	Unspliced*	Spliced	Unspliced*	(Lbs./100ft)	(Kgs./100m)	Cost per foot
1-5/8	40	291,000	323,300	131,998	146,649	65.88	98	19.51
1-3/4	44	314,000	348,900	142,430	158,261	79.32	118	23.57
2	48	355,000	392,450	161,028	178,015	92.77	138	27.95
2-1/8	52	428,000	475,600	194,141	215,732	112.93	168	30.97
2-1/4	56	481,000	534,400	218,182	242,404	124.36	185	35.71
2-1/2	60	530,000	588,900	240,408	267,125	150.58	224	40.28
2-5/8	64	496,000	662,200	224,986	300,374	170.74	254	call for pricing
2-3/4	68	660,000	733,300	299,376	332,625	190.24	283	69.23
3	72	780,000	866,700	353,808	393,135	215.78	321	75.38
3-1/8	76	850,000	944,400	385,560	428,380	235.28	350	call for pricing
3-1/4	80	940,000	1,045,400	426,384	474,193	262.17	390	83.08
3-1/2	84	1,108,000	1,231,000	502,589	558,382	301.16	448	95.38
3-5/8	88	1,250,000	1,388,900	567,000	630,005	321.32	478	call for pricing
3-3/4	92	1,317,000	1,463,000	598,000	664,000	343	510	call for pricing
4	96	1,520,000	1,689,000	690,000	766,000	394	586	175.00
4-1/8	100	1,622,000	1,802,000	736,000	818,000	457	679	call for pricing
4-1/4	104	1,697,000	1,886,000	770,000	856,000	514	765	call for pricing
4-1/2	108	1,827,000	2,030,000	829,000	921,000	530	789	call for pricing
4-5/8	112	1,880,000	2,089,000	853,000	948,000	546	812	call for pricing
4-3/4	116	1,927,000	2,141,000	874,000	971,000	587	873	call for pricing
5	120	2,069,500	2,299,000	939,000	1,043,000	606	902	call for pricing
5-1/8	124	2,212,000	2,458,000	1,004,000	1,115,000	657	978	call for pricing
5-1/4	128	2,355,000	2,617,000	1,069,000	1,187,000	703	1,046	call for pricing
5-1/2	132	2,497,500	2,775,000	1,133,000	1,259,000	749	1,114	call for pricing
5-5/8	136	2,640,000	2,933,000	1,198,000	1,331,000	813	1,210	call for pricing
5-3/4	140	2,782,500	3,092,000	1,262,000	1,403,000	871	1,296	call for pricing
6	144	2,925,000	3,250,000	1,327,000	1,475,000	932	1,386	call for pricing
6-1/8	148	3,068,000	3,409,000	1,392,000	1,547,000	985	1,465	call for pricing
6-1/4	152	3,210,500	3,567,000	1,457,000	1,618,000	1,038	1,545	call for pricing
6-1/2	156	3,353,000	3,726,000	1,521,000	1,691,000	1,103	1,642	call for pricing
6-5/8	160	3,496,000	3,884,000	1,586,000	1,762,000	1,159	1,725	call for pricing
6-3/4	164	3,638,500	4,043,000	1,651,000	1,834,000	1,227	1,827	call for pricing
7	168	3,781,000	4,201,000	1,716,000	1,906,000	1,284	1,911	call for pricing
7-1/8	172	3,963,500	4,404,000	1,798,000	1,998,000	1,334	1,986	call for pricing
7-1/4	176	4,066,000	4,518,000	1,845,000	2,050,000	1,392	2,072	call for pricing
7-1/2	180	4,209,000	4,677,000	1,910,000	2,122,000	1,452	2,161	call for pricing
7-5/8	184	4,351,500	4,835,000	1,974,000	2,194,000	1,527	2,272	call for pricing
7-3/4	188	4,494,000	4,993,000	2,039,000	2,265,000	1,589	2,365	call for pricing
8	192	4,637,000	5,152,000	2,104,000	2,338,000	1,653	2,459	call for pricing
*Unspliced Minimum Breaking Strength (MBS) - All tests are in Accordance with ISO 2307

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Diameter (inches)	5/16"
Construction	12 Strand
Spliced Breaking Strength (Lbs)	11,700

Products specifications

Product Resources
Product Resource	Product Information
Product Resource	HMPE Rope Information
