Bulked Nylon (Cordura®) Connection Point Sleeves are

automatically supplied on Lift-It® UHMPE Rope Slings.

SX and Dyneema® Sleeves are available on request for an

additional charge.

Dynemma® Connection Point Sleeves utilizing Velcro® closure

are also available enabling the user to add Connection Point

Sleeves at any time.

Lift-It® UHMPE Endless Rope Slings can be fabricated into a

Fixed Eye configuration where the two endless body members

are set and secured beside each other. In this configuration,

sling users have the convenience of a unitized sling body but

are unable to rotate the sling connection points.

Unless otherwise specified, Endless Slings will be supplied. To

order the Fixed Eye configuration, “FE” must be added after

“EN” to the stock number. Example: EN-FE-UHMPE-2.

Depending upon the length of Lift-It® UHMPE Endless Rope Sling, you may have a choice where to place the splice.

Rope Diameter (Inches)	Rope Diameter (mm)	Stock Number	Working Load Limits (Lbs.)			Sling Weight Based on Min. Length (Lbs.)	Rope Weight Per Adder Foot (Lbs.)	Minimum Sling Length (Bearing) Feet-Inches
			Choker	Vertical	90° Basket


1/4"	6mm	EN-UHMPE-1/4	1,120	2,376	4,752	0.1	0.04	1'-4"
5/16"	8mm	EN-UHMPE-5/16	1,630	3,415	6,830	0.18	0.06	1'-8"
3/8"	9mm	EN-UHMPE-3/8	2,450	5,197	10,394	0.28	0.08	2'
7/16"	11mm	EN-UHMPE-7/16	2,940	6,237	12,474	0.36	0.08	2'-4"
1/2"	12mm	EN-UHMPE-1/2	4,380	9,207	18,414	0.6	0.12	2'-8"
9/16"	14mm	EN-UHMPE-9/16	5,300	11,137	22,274	0.88	0.16	3'
5/8"	16mm	EN-UHMPE-5/8	7,190	15,147	30,294	1.32	0.22	3'-4"
3/4"	18mm	EN-UHMPE-3/4	9,590	20,344	40,688	1.82	0.26	4'
13/16"	20mm	EN-UHMPE-13/16	10,300	21,978	43,956	2.56	0.32	4'-5"
7/8"	22mm	EN-UHMPE-7/8	12,900	27,472	54,944	3.6	0.4	4'-8"
1"	24mm	EN-UHMPE-1	15,400	32,670	65,340	4.37	0.46	5'-5"
1-1/16"	26mm	EN-UHMPE-1-1/16	18,000	38,313	76,626	5.6	0.56	5'-8"
1-1/8"	28mm	EN-UHMPE-1-1/8	20,500	43,659	87,318	6.72	0.64	6'
1-1/4"	30mm	EN-UHMPE-1-1/4	23,100	49,005	98,010	9	0.72	6'-8"
1-5/16"	32mm	EN-UHMPE-1-5/16	27,400	58,212	116,424	10.92	0.84	7'
1-1/2"	36mm	EN-UHMPE-1-1/2	30,900	65,637	131,274	14.56	1.04	8'
1-5/8"	40mm	EN-UHMPE-1-5/8	40,700	86,130	172,260	19.8	1.32	8'-8"
1-3/4"	44mm	EN-UHMPE-1-3/4	43,900	92,070	184,140	25.74	1.56	9'-5"
2"	48mm	EN-UHMPE-2	49,700	105,435	210,870	32.76	1.82	10'-8"
2-1/8"	52mm	EN-UHMPE-2-1/8	59,900	126,225	252,450	42.51	2.18	11'-5"
2-1/4"	56mm	EN-UHMPE-2-1/4	67,300	142,560	285,120	50.02	2.44	12'
2-1/2"	60mm	EN-UHMPE-2-1/2	74,200	157,410	314,820	69.56	2.96	13'-5"
2-5/8"	64mm	EN-UHMPE-2-5/8	83,400	176,715	353,430	93.52	3.34	14'-1"
2-3/4"	68mm	EN-UHMPE-2-3/4	92,400	196,020	392,040	123.42	3.74	14'-8"
3"	72mm	EN-UHMPE-3	109,200	231,660	463,320	162.64	4.28	16'-1"
3-1/8"	76mm	EN-UHMPE-3-1/8	119,000	252,450	504,900			16'-8"
3-1/4"	80mm	EN-UHMPE-3-1/4	131,600	279,180	558,360			17'-5"
3-1/2"	84mm	EN-UHMPE-3-1/2	155,100	328,185	656,370			18'-8"
3-5/8"	88mm	EN-UHMPE-3-5/8	175,000	371,250	742,500			19'-5"
3-3/4"	92mm	EN-UHMPE-3-3/4	184,300	390,555	781,110			20'-1"
4"	96mm	EN-UHMPE-4	212,800	451,440	902,880			21'-5"
4-1/8"	100mm	EN-UHMPE-4-1/8	227,000	481,140	962,280			22'-1"
4-1/4"	104mm	EN-UHMPE-4-1/4	237,500	503,415	1,006,830			22'-10"
4-1/2"	108mm	EN-UHMPE-4-1/2	255,700	542,025	1,084,050			24'-1"
4-5/8"	112mm	EN-UHMPE-4-5/8	263,200	558,360	1,116,720			24'-10"
4-3/4"	116mm	EN-UHMPE-4-3/4	269,700	571,725	1,143,450			25'-5"
5"	120mm	EN-UHMPE-5	289,700	613,305	1,226,610			26'-10"
5-1/8"	124mm	EN-UHMPE-5-1/8	309,600	656,370	1,312,740			27'-5"
5-1/4"	128mm	EN-UHMPE-5-1/4	329,700	699,435	1,398,870			28'-1"
5-1/2"	132mm	EN-UHMPE-5-1/2	349,600	741,015	1,482,030			29'-5"
5-5/8"	136mm	EN-UHMPE-5-5/8	369,600	784,080	1,568,160			30'-1"
5-3/4"	140mm	EN-UHMPE-5-3/4	389,500	825,660	1,651,320			30'-10"
6"	144mm	EN-UHMPE-6	409,000	868,725	1,737,450			32'-1"
6-1/8"	148mm	EN-UHMPE-6-1/8	429,000	910,305	1,820,610			32'-10"
6-1/4"	152mm	EN-UHMPE-6-1/4	449,000	950,400	1,900,800			33'-6"
6-1/2"	156mm	EN-UHMPE-6-1/2	469,000	994,950	1,989,900			34'-10"
6-5/8"	160mm	EN-UHMPE-6-5/8	489,000	1,024,650	2,049,300			35'-6"
6-3/4"	164mm	EN-UHMPE-6-3/4	509,000	1,069,200	2,138,400			36'-1"
7"	168mm	EN-UHMPE-7	529,000	1,113,750	2,227,500			37'-6"
7-1/8"	172mm	EN-UHMPE-7-1/8	554,000	1,173,750	2,346,300			38'-1"
7-1/4"	176mm	EN-UHMPE-7-1/4	569,000	1,202,850	2,405,700			38'-10"
7-1/2"	180mm	EN-UHMPE-7-1/2	589,000	1,247,400	2,494,800			40'-2"
7-5/8"	184mm	EN-UHMPE-7-5/8	609,000	1,291,950	2,583,900			40'-10"
7-3/4"	188mm	EN-UHMPE-7-3/4	629,000	1,321,650	2,643,300			41'-6"
8"	192mm	EN-UHMPE-8	649,000	1,366,200	2,732,400			42'-10"
8-1/8"	196mm	EN-UHMPE-8-1/8	669,000	1,410,750	2,821,500			43'-6"
8-1/4"	200mm	EN-UHMPE-8-1/4	689,000	1,455,300	2,910,600			44'-2"

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Made in USA	Yes
Diameter (inches)	2-3/4"
Choker WLL (Lbs)	92,400
Vertical WLL (Lbs)	196,020
90° Basket WLL (Lbs)	392,040

Products specifications

Product Resources
Product Resource	Use Considerations

Contact Us Directly

Phone / Fax

Phone: 909-469-2251

Fax: 909-469-2252

Email

sales@lift-it.com

Address

1603 West Second Street
Pomona, CA 91766

Emergency Fabrication

909-524-9287

909-524-9204

Have a Question?

Your name *

Your email *

Comments *

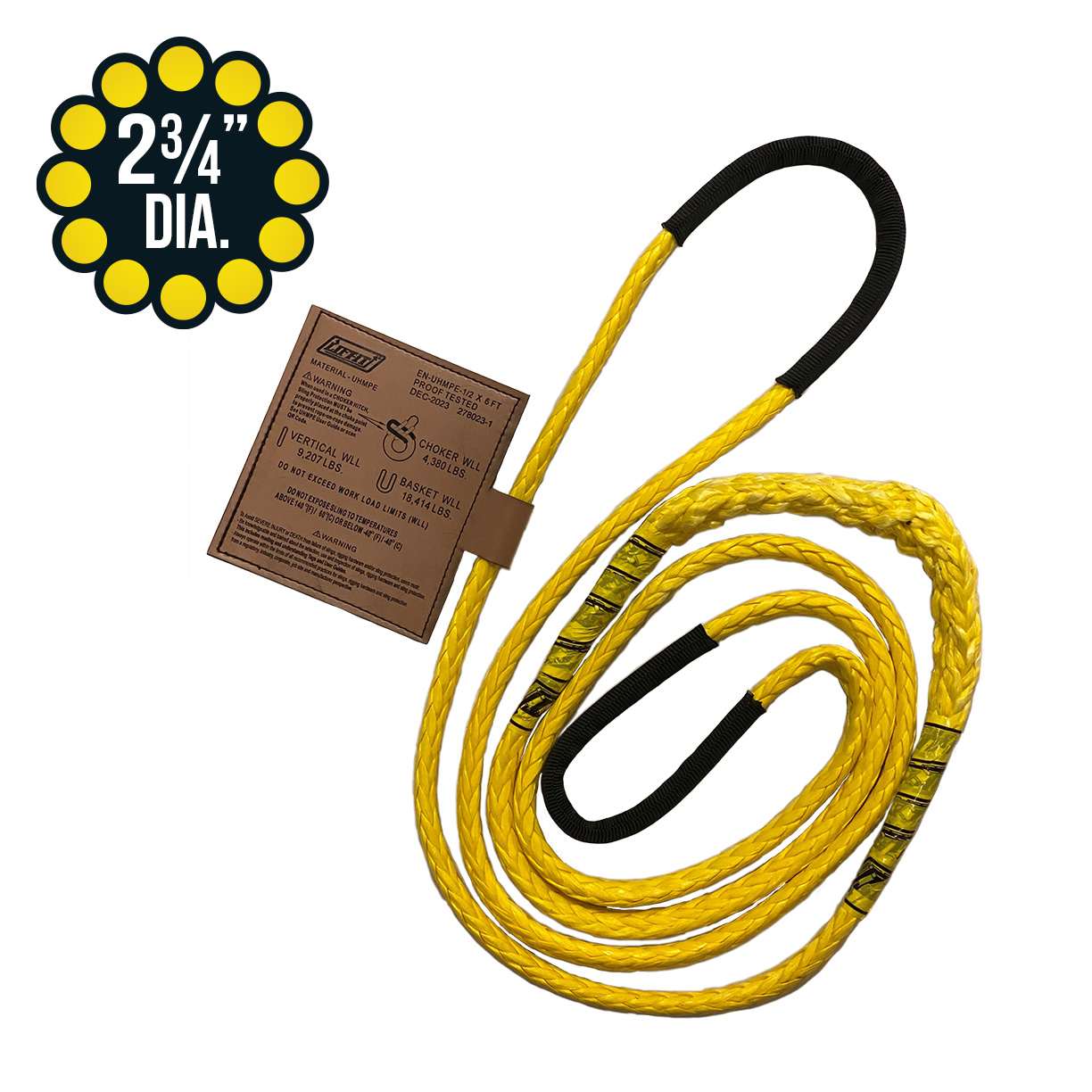

2-3/4"UHMPE PROLINE12™ Rope Slings - Endless
