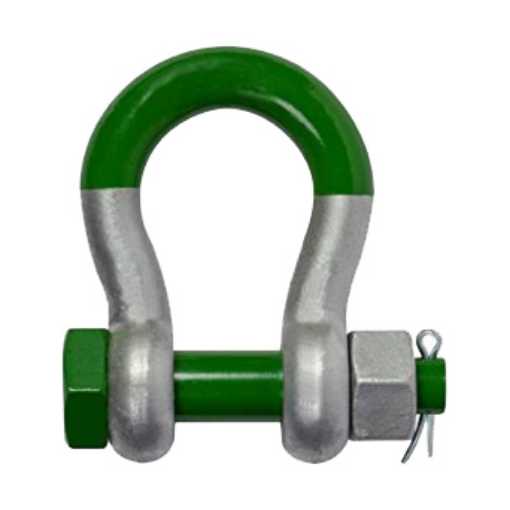

5/8" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 5 Ton

Manufacturer: Van Beest Shackles
Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles. Van Beest® Super Strong shackles are upset forged with no drop forge flashing marks. Van Beest® super strong shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These shackles also have a super smooth galvanized finished.
SKU: 5/8" - 5 ton
WLL (Tons) 5 t
i h
Fabrication Time: 1-2 days


Bow and pin: Alloy steel, Grade 8 quenched and tempered

Design Factor



U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, ASME B30.9


Hot dip galvanized

Temperature Range

-4°F (-20°C) to +392°F (200°C)


No extra charge for 3.1 material, proof test or EC declaration of conformity certificates.


For additional dimensional and tolerance information, CAD drawings are available on request.















All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.


Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to:

>> Click here for more details <<
Products specifications
Diameter (inches) 5/8"
WLL (Tons) 5
