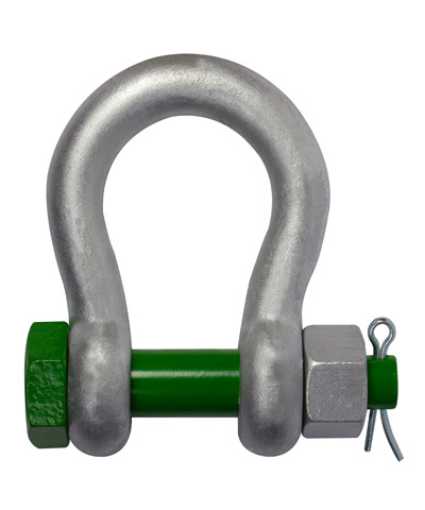

1 ¾" Van Beest® G-4163 Bolt, Nut & Cotter Anchor Shackles | 25 Ton | GPGHMB45

Material

Bow and pin: High tensile steel, Grade 6 quenched and tempered

Design Factor

6/1

Standards

U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, EN 13889

Finish

Hot dip galvanized

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates. DNV 2.7-1 certification available for 2 ton and larger shackles.

Note

For additional dimensional and tolerance information, CAD drawings are available on request.

Dimensions (Inches)

Work
Load
Limit
(t)

Diameter

Width

Length

Thickness

Unit

Weight
(Lbs.)

Bow
a

Pin
b

Eye
c

Eye
d

Inside
e

Bow
g

Overall
j

Inside
f

Overall
h

Bolt
i

Nut
k

0.5

1/4

5/16

21/32

9/32

15/32

25/32

1-11/32

1-5/32

1-29/32

1-21/32

5/32

0.13

0.75

5/16

3/8

25/32

11/32

17/32

7/8

1-9/16

1-1/4

2-7/32

1-31/32

3/16

0.25

1

3/8

7/16

7/8

13/32

21/32

1-1/32

1-13/16

1-7/16

2-1/2

2-3/8

5/16

0.34

1.5

7/16

1/2

1-1/32

7/16

3/4

1-5/32

2

1-11/16

2-29/32

2-5/8

7/16

0.48

2

1/2

5/8

1-11/32

1/2

7/8

1-1/4

2-9/32

2

3-1/2

3-7/32

1/2

0.92

3.25

5/8

3/4

1-9/16

5/8

1-1/16

1-11/16

2-15/16

2-17/32

4-11/32

3-27/32

21/32

1.62

4.75

3/4

7/8

1-13/16

3/4

1-7/32

2

3-1/2

3

5-3/32

4-1/2

3/4

2.59

6.5

7/8

1

2-1/16

7/8

1-13/32

2-9/32

4-1/32

3-9/32

5-21/32

5-1/8

7/8

3.9

8.5

1

1-1/8

2-5/16

31/32

1-11/16

2-11/16

4-21/32

3-3/4

6-15/32

5-29/32

31/32

5.69

9.5

1-1/8

1-1/4

2-19/32

1-3/32

1-27/32

2-15/16

5-5/32

4-1/4

7-9/32

6-17/32

1-1/16

8.06

12

1-1/4

1-3/8

2-27/32

1-1/4

2

3-9/32

5-25/32

4-17/32

7-29/32

7

1-3/16

10.81

13.5

1-3/8

1-1/2

3-5/32

1-3/8

2-1/4

3-5/8

6-3/8

5-1/4

8-15/16

7-3/4

1-5/16

14.42

17

1-1/2

1-5/8

3-15/32

1-1/2

2-3/8

3-29/32

6-7/8

5-3/4

9-13/16

7-15/16

3/4

18.06

25

1-3/4

2

4-1/16

1-25/32

2-29/32

4-31/32

8-1/2

7

11-13/16

9-13/16

29/32

31.34

35

2

2-1/4

4-3/8

1-31/32

3-9/32

5-7/16

9-3/8

7-3/4

13-1/32

10-19/32

1-1/32

43.77

42.5

2-1/4

2-9/16

5-1/8

2-1/4

3-3/4

6-5/16

10-23/32

8-3/4

14-27/32

11-27/32

1-5/32

62.46

55

2-1/2

2-3/4

5-23/32

2-9/16

4-1/8

7-3/32

12-7/32

10-1/4

17-1/16

13

1-1/4

87.27

85

3

3-1/4

6-3/8

2-7/8

5

7-15/32

13-3/8

12-15/16

20-3/4

14-31/32

1-17/32

136.69
