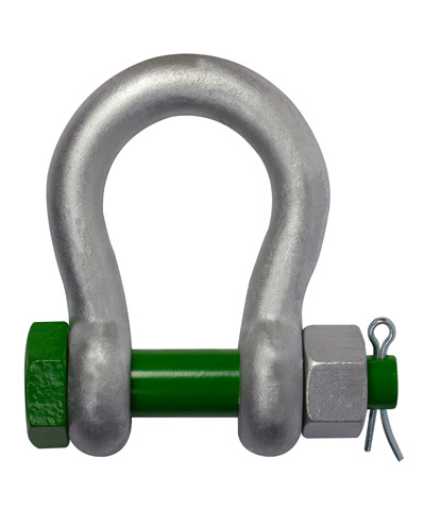

1" Van Beest® G-4163 Bolt, Nut & Cotter Anchor Shackles | 8.5 Ton

Material: Bow and pin: High tensile steel, Grade 6 quenched and tempered Van Beest® shackles are upset forged with no drop forge flashing marks. Van Beest® shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These shackles also have a super smooth galvanized finished.
More...
SKU: 1" - 8.5 ton
WLL (Tons) 8.5 t
$43.07
i h

Material

Bow and pin: High tensile steel, Grade 6 quenched and tempered

Design Factor

6/1

Standards

U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, EN 13889

Finish

Hot dip galvanized

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates. DNV 2.7-1 certification available for 2 ton and larger shackles.

Note

For additional dimensional and tolerance information, CAD drawings are available on request.






Dimensions (Inches)





Work
Load
Limit
(t)

Diameter

Width

Length

Thickness

Unit

Weight
(Lbs.)

Bow
a

Pin
b

Eye
c

Eye
d

Inside
e

Bow
g

Overall
j

Inside
f

Overall
h

Bolt
i

Nut
k

0.5

1/4

5/16

21/32

9/32

15/32

25/32

1-11/32

1-5/32

1-29/32

1-21/32

5/32

0.13

0.75

5/16

3/8

25/32

11/32

17/32

7/8

1-9/16

1-1/4

2-7/32

1-31/32

3/16

0.25

1

3/8

7/16

7/8

13/32

21/32

1-1/32

1-13/16

1-7/16

2-1/2

2-3/8

5/16

0.34

1.5

7/16

1/2

1-1/32

7/16

3/4

1-5/32

2

1-11/16

2-29/32

2-5/8

7/16

0.48

2

1/2

5/8

1-11/32

1/2

7/8

1-1/4

2-9/32

2

3-1/2

3-7/32

1/2

0.92

3.25

5/8

3/4

1-9/16

5/8

1-1/16

1-11/16

2-15/16

2-17/32

4-11/32

3-27/32

21/32

1.62

4.75

3/4

7/8

1-13/16

3/4

1-7/32

2

3-1/2

3

5-3/32

4-1/2

3/4

2.59

6.5

7/8

1

2-1/16

7/8

1-13/32

2-9/32

4-1/32

3-9/32

5-21/32

5-1/8

7/8

3.9

8.5

1

1-1/8

2-5/16

31/32

1-11/16

2-11/16

4-21/32

3-3/4

6-15/32

5-29/32

31/32

5.69

9.5

1-1/8

1-1/4

2-19/32

1-3/32

1-27/32

2-15/16

5-5/32

4-1/4

7-9/32

6-17/32

1-1/16

8.06

12

1-1/4

1-3/8

2-27/32

1-1/4

2

3-9/32

5-25/32

4-17/32

7-29/32

7

1-3/16

10.81

13.5

1-3/8

1-1/2

3-5/32

1-3/8

2-1/4

3-5/8

6-3/8

5-1/4

8-15/16

7-3/4

1-5/16

14.42

17

1-1/2

1-5/8

3-15/32

1-1/2

2-3/8

3-29/32

6-7/8

5-3/4

9-13/16

7-15/16

3/4

18.06

25

1-3/4

2

4-1/16

1-25/32

2-29/32

4-31/32

8-1/2

7

11-13/16

9-13/16

29/32

31.34

35

2

2-1/4

4-3/8

1-31/32

3-9/32

5-7/16

9-3/8

7-3/4

13-1/32

10-19/32

1-1/32

43.77

42.5

2-1/4

2-9/16

5-1/8

2-1/4

3-3/4

6-5/16

10-23/32

8-3/4

14-27/32

11-27/32

1-5/32

62.46

55

2-1/2

2-3/4

5-23/32

2-9/16

4-1/8

7-3/32

12-7/32

10-1/4

17-1/16

13

1-1/4

87.27

85

3

3-1/4

6-3/8

2-7/8

5

7-15/32

13-3/8

12-15/16

20-3/4

14-31/32

1-17/32

136.69





All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Diameter (inches) 1"
WLL (Tons) 8.5
