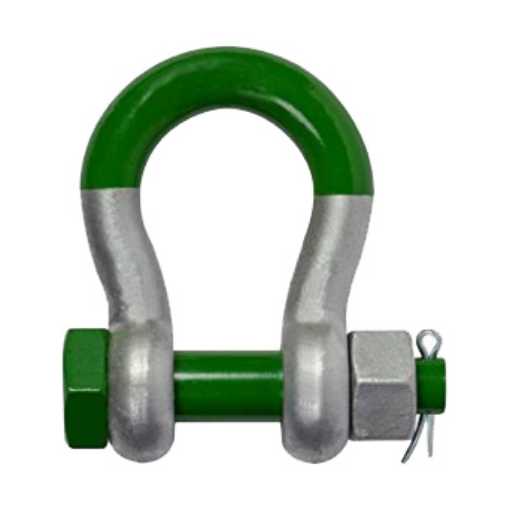

1" Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles | 12.5 Ton

Manufacturer: Van Beest Green Pin Shackles

Van Beest® G-5263 Bolt, Nut & Cotter Alloy Anchor Super Strong Shackles. Van Beest® Super Strong shackles are upset forged with no drop forge flashing marks. Van Beest® super strong shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These shackles also have a super smooth galvanized finished.

More...

SKU: 1" - 12.5 ton

WLL (Tons) 12.5 t

$126.95

Qty:

i h

Fabrication Time: 1-2 days

Overview
Specifications
Contact Us

Material	Bow and pin: Alloy steel, Grade 8 quenched and tempered
Design Factor	5/1
Standards	U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, ASME B30.9
Finish	Hot dip galvanized
Temperature Range	-4°F (-20°C) to +392°F (200°C)
Certification	No extra charge for 3.1 material, proof test or EC declaration of conformity certificates.
Note	For additional dimensional and tolerance information, CAD drawings are available on request.

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Diameter (inches)	1"
WLL (Tons)	12.5
