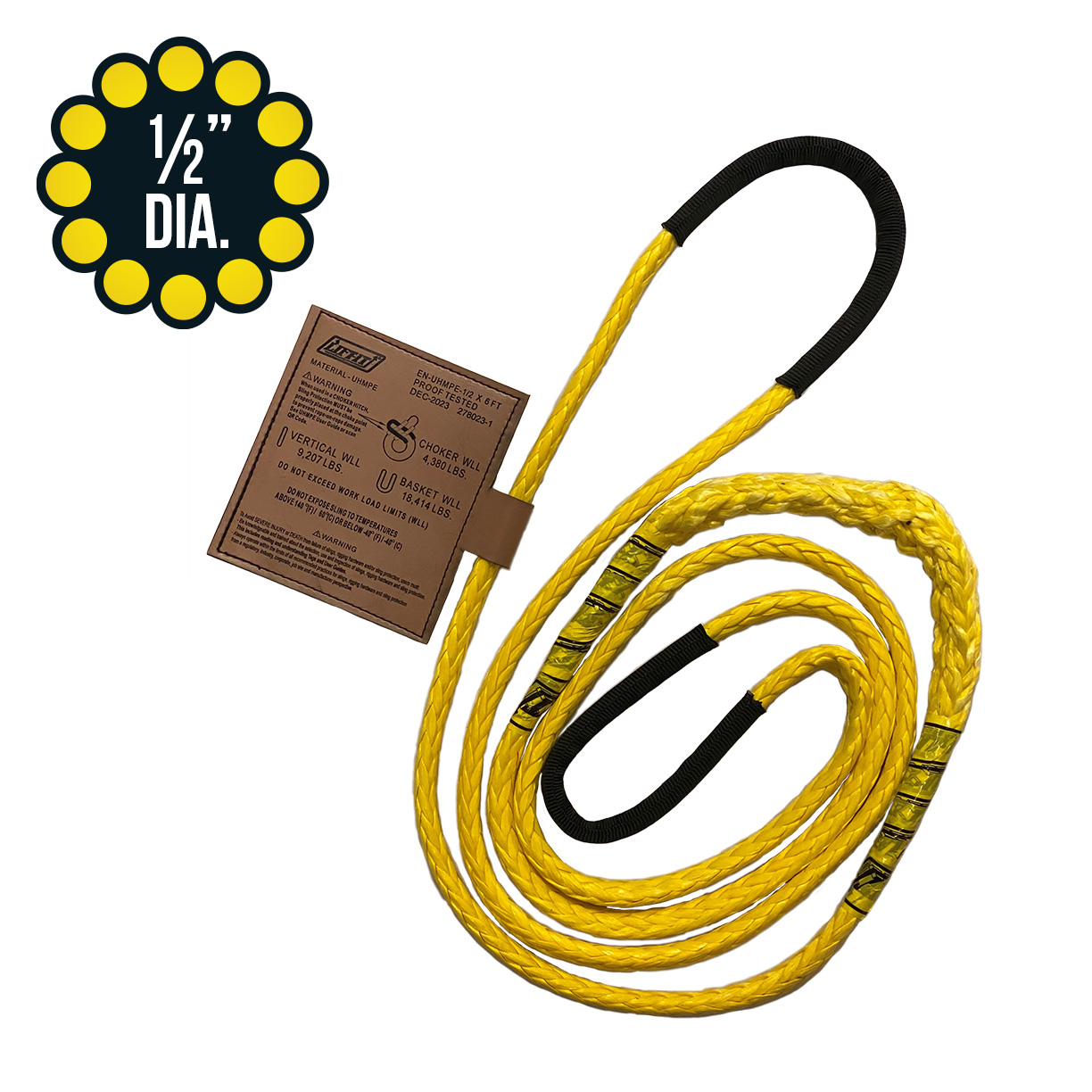

1/2"UHMPE PROLINE12™ Rope Slings - Endless

Manufacturer: Lift-It

Super strong, ultra-light Lift-It® UHMPE Rope Slings have similar elongation properties but are 1/7 the weight of heavy, cumbersome wire rope slings. UHMPE Rope Slings also offer the advantages of flexibility as well as the absence of lubricants and corrosion when compared to wire rope slings. Unlike wire rope slings, UHMPE Rope Slings are neutrally buoyant for ease of handling in diving, salvage, maintenance and marine construction activities for oil, gas and alternative energy companies.

  • Lift-It® UHMPE Rope Slings do not absorb water and sling capacity is not reduced while wet.
  • UHMPE Rope Slings are easy to inspect when compared to rigid wire rope slings and roundslings.
  • External and internal wear is more readily identifiable with 12 x 12 braided strand UHMPE Rope Slings.
  • UHMPE Rope Slings have recommended usage diameters that have been validated through destruction testing.
More...
SKU: EN-UHMPE-1/2
*
Choker WLL (Lbs) 4,380
Vertical WLL (Lbs) 9,207
90° Basket WLL (Lbs) 18,414
$97.00
i h
Fabrication Time: 8-11 days
Made in the USA



Bulked Nylon (Cordura®) Connection Point Sleeves are

automatically supplied on Lift-It® UHMPE Rope Slings.

SX and Dyneema® Sleeves are available on request for an

additional charge.

Dynemma® Connection Point Sleeves utilizing Velcro® closure

are also available enabling the user to add Connection Point

Sleeves at any time.

Lift-It® UHMPE Endless Rope Slings can be fabricated into a

Fixed Eye configuration where the two endless body members

are set and secured beside each other. In this configuration,

sling users have the convenience of a unitized sling body but

are unable to rotate the sling connection points.

Unless otherwise specified, Endless Slings will be supplied. To

order the Fixed Eye configuration, “FE” must be added after

“EN” to the stock number. Example: EN-FE-UHMPE-2.

endless rope sling endless rope sling

Depending upon the length of Lift-It® UHMPE Endless Rope Sling, you may have a choice where to place the splice.

endless rope sling endless rope sling endless rope sling





Rope Diameter (Inches) Rope Diameter (mm)  Stock Number Working Load Limits (Lbs.)  Sling Weight Based on Min. Length (Lbs.) Rope Weight    Per Adder   Foot (Lbs.)  Minimum Sling Length (Bearing) Feet-Inches
Choker Vertical 90° Basket
1/4" 6mm EN-UHMPE-1/4 1,120 2,376 4,752 0.1 0.04 1'-4"
5/16" 8mm EN-UHMPE-5/16 1,630 3,415 6,830 0.18 0.06 1'-8"
3/8" 9mm EN-UHMPE-3/8 2,450 5,197 10,394 0.28 0.08 2'
7/16" 11mm EN-UHMPE-7/16 2,940 6,237 12,474 0.36 0.08 2'-4"
1/2" 12mm EN-UHMPE-1/2 4,380 9,207 18,414 0.6 0.12 2'-8"
9/16" 14mm EN-UHMPE-9/16 5,300 11,137 22,274 0.88 0.16 3'
5/8" 16mm EN-UHMPE-5/8 7,190 15,147 30,294 1.32 0.22 3'-4"
3/4" 18mm EN-UHMPE-3/4 9,590 20,344 40,688 1.82 0.26 4'
13/16" 20mm EN-UHMPE-13/16 10,300 21,978 43,956 2.56 0.32 4'-5"
7/8" 22mm EN-UHMPE-7/8 12,900 27,472 54,944 3.6 0.4 4'-8"
1" 24mm EN-UHMPE-1 15,400 32,670 65,340 4.37 0.46 5'-5"
1-1/16" 26mm EN-UHMPE-1-1/16 18,000 38,313 76,626 5.6 0.56 5'-8"
1-1/8" 28mm EN-UHMPE-1-1/8 20,500 43,659 87,318 6.72 0.64 6'
1-1/4" 30mm EN-UHMPE-1-1/4 23,100 49,005 98,010 9 0.72 6'-8"
1-5/16" 32mm EN-UHMPE-1-5/16 27,400 58,212 116,424 10.92 0.84 7'
1-1/2" 36mm EN-UHMPE-1-1/2 30,900 65,637 131,274 14.56 1.04 8'
1-5/8" 40mm EN-UHMPE-1-5/8 40,700 86,130 172,260 19.8 1.32 8'-8"
1-3/4" 44mm EN-UHMPE-1-3/4 43,900 92,070 184,140 25.74 1.56 9'-5"
2" 48mm EN-UHMPE-2 49,700 105,435 210,870 32.76 1.82 10'-8"
2-1/8" 52mm EN-UHMPE-2-1/8 59,900 126,225 252,450 42.51 2.18 11'-5"
2-1/4" 56mm EN-UHMPE-2-1/4 67,300 142,560 285,120 50.02 2.44 12'
2-1/2" 60mm EN-UHMPE-2-1/2 74,200 157,410 314,820 69.56 2.96 13'-5"
2-5/8" 64mm EN-UHMPE-2-5/8 83,400 176,715 353,430 93.52 3.34 14'-1"
2-3/4" 68mm EN-UHMPE-2-3/4 92,400 196,020 392,040 123.42 3.74 14'-8"
3" 72mm EN-UHMPE-3 109,200 231,660 463,320 162.64 4.28 16'-1"
3-1/8" 76mm EN-UHMPE-3-1/8 119,000 252,450 504,900   16'-8"
3-1/4" 80mm EN-UHMPE-3-1/4 131,600 279,180 558,360 17'-5"
3-1/2" 84mm EN-UHMPE-3-1/2 155,100 328,185 656,370 18'-8"
3-5/8" 88mm EN-UHMPE-3-5/8 175,000 371,250 742,500 19'-5"
3-3/4" 92mm EN-UHMPE-3-3/4 184,300 390,555 781,110 20'-1"
4" 96mm EN-UHMPE-4 212,800 451,440 902,880 21'-5"
4-1/8" 100mm EN-UHMPE-4-1/8 227,000 481,140 962,280 22'-1"
4-1/4" 104mm EN-UHMPE-4-1/4 237,500 503,415 1,006,830 22'-10"
4-1/2" 108mm EN-UHMPE-4-1/2 255,700 542,025 1,084,050 24'-1"
4-5/8" 112mm EN-UHMPE-4-5/8 263,200 558,360 1,116,720 24'-10"
4-3/4" 116mm EN-UHMPE-4-3/4 269,700 571,725 1,143,450 25'-5"
5" 120mm EN-UHMPE-5 289,700 613,305 1,226,610 26'-10"
5-1/8" 124mm EN-UHMPE-5-1/8 309,600 656,370 1,312,740 27'-5"
5-1/4" 128mm EN-UHMPE-5-1/4 329,700 699,435 1,398,870 28'-1"
5-1/2" 132mm EN-UHMPE-5-1/2 349,600 741,015 1,482,030 29'-5"
5-5/8" 136mm EN-UHMPE-5-5/8 369,600 784,080 1,568,160 30'-1"
5-3/4" 140mm EN-UHMPE-5-3/4 389,500 825,660 1,651,320 30'-10"
6"  144mm EN-UHMPE-6 409,000 868,725 1,737,450 32'-1"
6-1/8" 148mm EN-UHMPE-6-1/8 429,000 910,305 1,820,610 32'-10"
6-1/4" 152mm EN-UHMPE-6-1/4 449,000 950,400 1,900,800 33'-6"
6-1/2" 156mm EN-UHMPE-6-1/2 469,000 994,950 1,989,900 34'-10"
6-5/8" 160mm EN-UHMPE-6-5/8 489,000 1,024,650 2,049,300 35'-6"
6-3/4" 164mm EN-UHMPE-6-3/4 509,000 1,069,200 2,138,400 36'-1"
7" 168mm EN-UHMPE-7 529,000 1,113,750 2,227,500 37'-6"
7-1/8" 172mm EN-UHMPE-7-1/8 554,000 1,173,750 2,346,300 38'-1"
7-1/4" 176mm EN-UHMPE-7-1/4 569,000 1,202,850 2,405,700 38'-10"
7-1/2" 180mm EN-UHMPE-7-1/2 589,000 1,247,400 2,494,800 40'-2"
7-5/8" 184mm EN-UHMPE-7-5/8 609,000 1,291,950 2,583,900 40'-10"
7-3/4" 188mm EN-UHMPE-7-3/4 629,000 1,321,650 2,643,300 41'-6"
8" 192mm EN-UHMPE-8 649,000 1,366,200 2,732,400 42'-10"
8-1/8" 196mm EN-UHMPE-8-1/8 669,000 1,410,750 2,821,500 43'-6"
8-1/4" 200mm EN-UHMPE-8-1/4 689,000 1,455,300 2,910,600 44'-2"
All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Made in USA Yes
Diameter (inches) 1/2"
Choker WLL (Lbs) 4,380
Vertical WLL (Lbs) 9,207
90° Basket WLL (Lbs) 18,414
