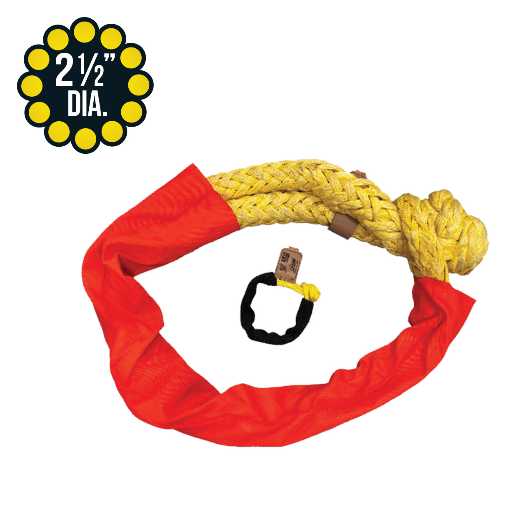

2-1/2x96" UHMPE Soft Shackles

Manufacturer: Lift-It

Lift-It® Soft Shackles can be used as a lightweight replacement for common heavy metal shackles. Each Lift-It® Soft Shackle is constructed from UHMPE rope and includes Cordura® tubular chafe protection. Lift-It® Soft Shackles are clearly labeled with Work Load Limits, won't rust and do not require three men and a small boy to carry! - Up to 109,500lbs Break - UHMPE PROLINE12 Braided Rope, coated with pigment dye. - Recovery range: Large Truck, SUV and large Overland vehicles. - Fabricated by hand in the U.S.A.

More...

SKU: SSIU-UHMPE-2-1/2X96

SLBS (Lbs.) 800,000 lbs

SLBS (t) 362.8 t

WLL @ 5:1 (Lbs.) 160,000 lbs

WLL @ 5:1 (t) 72.56 t

WLL @ 3:1 (Lbs.) 266,000 lbs

WLL @ 3:1 (t) 121 t

$2,712.13

Qty:

i h

Made in the USA

Overview
Specifications
Product Resources
Contact Us

NEVER use Lift-It® Soft Shackles for lifting.

Lift-It® Soft Shackles must only be used by a qualified person.

Part no.	Rope Diameter*		Closed Length		Straight-Line Break Strength SLBS¹ (Lbs.)	Straight-Line Break Strength SLBS¹ (t)	WLL @5:1 (Lbs.)	WLL @5:1 (t)	WLL @3:1 (Lbs.)	WLL @3:1 (t)	Weight (Lbs.)
Part no.	(In.)	(MM)	(In.)	(M)	Straight-Line Break Strength SLBS¹ (Lbs.)	Straight-Line Break Strength SLBS¹ (t)	WLL @5:1 (Lbs.)	WLL @5:1 (t)	WLL @3:1 (Lbs.)	WLL @3:1 (t)	Weight (Lbs.)
SSIU-UHMPE-5/16X24	5/16	6	24	0.61	24000	10.9	4800	2.1	8000	4	3
SSIU-UHMPE-3/8X24	3/8	9	24	0.61	35000	15.8	7000	3.16	11900	5	3
SSIU-UHMPE-7/16X24	7/16	11	24	0.61	40500	18.3	8100	3.66	13500	6	3
SSIU-UHMPE-1/2X30	1/2	12	30	0.61	43000	19.5	8600	3.9	14400	7	3
SSIU-UHMPE-9/16X30	9/16	14	30	0.61	67000	30.3	13400	6.06	22300	10	3
SSIU-UHMPE-5/8X36	5/8	16	36	0.76	75000	34	15000	6.8	25000	11	4
SSIU-UHMPE-3/4X36	3/4	18	36	0.76	91000	41.2	18200	8.24	30000	14	6
SSIU-UHMPE-7/8X40	7/8	22	40	1.02	109500	49.6	21900	9.92	36600	17	7
SSIU-UHMPE-1X60	1	25	60	1.52	135000	61.2	27000	12.24	45000	20	8
SSIU-UHMPE-1-1/8X60	1-1/8	29	60	1.52	169400	76.8	33880	15.36	56467	26	10
SSIU-UHMPE-1-1/4X72	1-1/4	32	72	1.83	241000	109.3	48200	21.86	80000	36	12
SSIU-UHMPE-1-1/2X72	1-1/2	38	72	1.83	370000	167.8	74000	33.56	124000	56	15
SSIU-UHMPE-1-3/4X72	1-3/4	45	72	1.83	500000	226.7	100000	45.34	166000	76	18
SSIU-UHMPE-2X72	2	50	72	1.83	625000	283.4	125000	56.68	208000	94	22
SSIU-UHMPE-2-1/2X96	2-1/2	64	96	2.44	800000	362.8	160000	72.56	266000	121	30

¹SLBS is based upon destruction testing done in laboratory testing conditions which will NEVER be duplicated during your actual usage.
SLBS is also based upon the product being in a NEW and UNUSED condition

*Referenced Rope Diameter must not be used for determination of connection points or fitment. Finished Soft Shackle body diameter will be at least twice (2X) the Rope Diameter, and will exceed 3X the rope diameter at the base of the knot.

Lift-It® Soft Shackle Installation Instructions (same procedure for all sizes)


To open the Soft Shackle, hold the base of the Noose and pull the rope that forms the Noose to expand it. To disengage, Lift the Noose over the Knot.	Pass the Soft Shackle Body through the connection points. Ensure that connection points will not damage the Soft Shackle. Do not allow twists in the Body.	To close the Soft Shackle, place the Noose over the Knot (1) and cinch the Noose securely around the Body and against the base of the Knot (2).	Always ensure that Sleeves are properly placed and that the Noose is connected at the base of the Knot. NEVER attach the base of the Noose, the Noose or the Knot to connection points. NEVER shock load Recovery Products and always remember, Slow & Steady!

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Made in USA	Yes
Diameter (inches)	2-1/2"
Closed Length (inches)	96
SLBS (Lbs.)	800,000
SLBS (t)	362.8
WLL @ 5:1 (Lbs.)	160,000
WLL @ 5:1 (t)	72.56
WLL @ 3:1 (Lbs.)	266,000
WLL @ 3:1 (t)	121

Products specifications

Product Resources
Product Resource	Recovery Products User Guide
