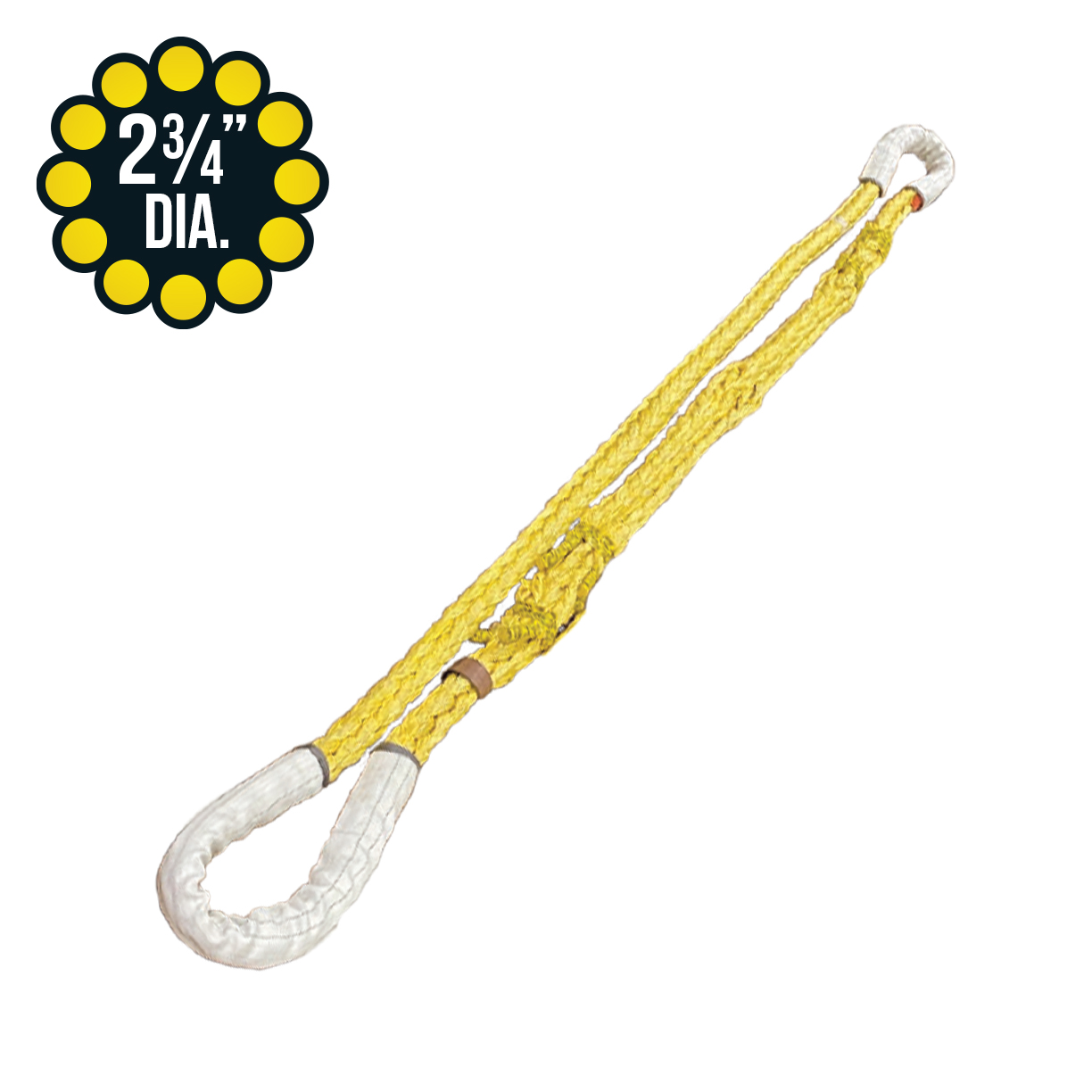

2-3/4"UHMPE Recovery / Tow Ropes - Endless with Formed Eyes

Manufacturer: Lift-It

Lift-It® Endless - with Formed Eye Synthetic Recovery Ropes / tow lines offer the ease of use of an Eye & Eye configuration, with the increased Work Load Limit that an Endless design provides.

Each Lift-It® Endless - Eye & Eye Recovery Rope is constructed from UHMPE rope fabricated as an endless grommet, then eyes are formed that feature abrasion resistant HMPE eye protection. Other eye treatments are available on request.

More...

SKU: TR-EN-EESX12-UHMPE-2-3/4-V-O

Length in Feet (Ft.) *

30'
40'
50'
100'

SLBS (Lbs.) 1,152,360 lbs

SLBS (t) 523 t

WLL @ 5:1 (Lbs.) 230,472 lbs

WLL @ 5:1 (t) 105 t

WLL @ 3:1 (Lbs.) 384,120 lbs

WLL @ 3:1 (t) 174 t

$9,740.30

Qty:

i h

Fabrication Time: 8-11 days

Made in the USA

Overview
Specifications
Product Resources
Contact Us

PULLING FORCE OF CAT MINE VEHICLES (LBS.)
D-8	139,000	785D	187,300
D-9	161,000	793F	230,000
D-10	225,000	795F	295,600
D-11	330,600	797F	340,000

Stock Number	Straight-Line Break Strength SLBS (Lbs.)	Straight-Line Break Strength SLBS (t)	WLL @5:1 (Lbs.)	WLL @5:1 (t)	WLL @3:1 (Lbs.)	WLL @3:1 (t)	Eye Length (Inches)	Eye Diameter (Inches) with SX	Rope Diameter (Inches)	Rope Diameter (MM)	Standard Length (Feet)
TR-EN-EESX12-UHMPE-5/8-T-O	84,810	38.46	16962	7.69	28270	12.8	12	7/8	5/8	16	20
TR-EN-EESX12-UHMPE-3/4-T-O	113,025	51.26	22605	10	37675	17	12	1-1/8	3/4	19	20
TR-EN-EESX12-UHMPE-7/8-T-O	152,790	69.3	30558	14	50930	23	18	1-1/4	7/8	22	20
TR-EN-EESX18-UHMPE-1-T-O	173,250	78.58	34650	16	57750	26	18	1-1/2	1	25	20
TR-EN-EESX18-UHMPE-1-1/4-T-O	259,050	117.5	51810	24	86350	39	18	1-3/4	1-1/4	32	30
TR-EN-EESX24-UHMPE-1-1/2-T-O	354,750	160.9	70950	32	118250	54	24	2	1-1/2	38	30
TR-EN-EESX24-UHMPE-1-5/8-T-O	404,250	183.3	80850	37	134750	61	24	2-1/8	1-5/8	41	30
TR-EN-EESX24-UHMPE-1-3/4-T-O	502,400	227.8	100480	46	167467	76	24	2-1/4	1-3/4	44	30
TR-EN-EESX24-UHMPE-2-T-O	610,335	276.8	122067	55	203445	92	24	2-1/2	2	50	30
TR-EN-EESX30-UHMPE-2-1/4-V-O	775,665	351.8	155133	70	258555	117	30	2-3/4	2-1/4	57	30
TR-EN-EESX36-UHMPE-2-1/2-V-O	939,510	426.1	187902	85	313170	142	36	3	2-1/2	63	30
TR-EN-EESX36-UHMPE-2-3/4-V-O	1,152,360	523	230472	105	384120	174	36	3-1/4	2-3/4	68	30
TR-EN-EESX36-UHMPE-3-V-O	1,351,350	612.9	270270	123	450450	204	36	3-1/2	3	76	30
TR-EN-EESX36-UHMPE-3-1/4-V-O	1,551,000	703.5	310200	141	517000	235	36	3-3/4	3-1/4	82	30
TR-EN-EESX36-UHMPE-3-1/2-V-O	1,828,200	829.2	365640	166	609400	276	36	4	3-1/2	89	30

*Common sizes are shown, however custom eye sizes, lengths and Tow / Recovery Rope ratings are readily available.
Tubular Cordura® Sleeve (shown above) is standard, Velcro Sleeve available upon request

1. COMPLETE STOCK NUMBER

2. EYE LENGTH: Unless otherwise specified
Eye Lengths will be as shown in the chart above.

3. ROPE DIAMETER: Unloaded diameter of the bare rope.
Splices are approximately two times larger diameter.

4. COVER (Body Sleeve):
Style: V for Velcro / T for Tubular (standard)
Color: B for Black / O for Orange (standard)
(Ask a sales representative about other available options).

5. RECOVERY ROPE LENGTH: Unless otherwise specified:
Lengths are measured as bearing to bearing.

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Made in USA	Yes
Diameter (inches)	2-3/4"
Eye Length (inches)	36"
SLBS (Lbs.)	1,152,360
SLBS (t)	523
WLL @ 5:1 (Lbs.)	230,472
WLL @ 5:1 (t)	105
WLL @ 3:1 (Lbs.)	384,120
WLL @ 3:1 (t)	174

Products specifications

Product Resources
Product Resource	Use Considerations
