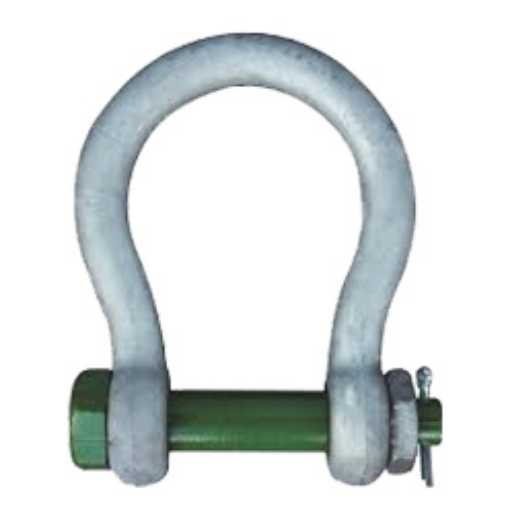

2" Van Beest® G-4263 Screw Pin Wide Mouth Shackles with Bolt, Nut and Cotter | 30 Ton

Material: Bow and pin: Alloy steel, Grade 8 quenched and tempered Van Beest® shackles are upset forged with no drop forge flashing marks. Van Beest® shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These shackles also have a super smooth galvanized finished.
More...
SKU: 2" - 30 ton
WLL (Tons) 30 t
$570.71
i h
Fabrication Time: 8-11 days

Material

Bow and pin: Alloy steel, Grade 8 quenched and tempered

Design Factor

6/1

Finish

Hot dip galvanized

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates.






Dimensions (Inches)





Work
Load
Limit
(Tons)

Diameter

Width

Length

Thickness

Unit

Weight
(Lbs.)

Bow
a

Pin
b

Eye
c

Eye
d

Inside
e

Bow
g

Overall
j

Inside
f

Overall
h

Bolt
i

Nut
k

4.75

7/8

1

2-1/16

7/8

2-15/32

3-15/32

5-3/16

4-13/32

6-13/16

6-3/16

29/32

4.59

6.5

1

1-1/8

2-5/16

31/32

2-15/16

4-1/8

6-3/32

5-5/16

8-1/32

7-5/32

31/32

6.92

8.5

1-1/8

1-1/4

2-19/32

1-3/32

3-7/32

4-17/32

6-23/32

5-13/16

8-27/32

7-29/32

1-3/32

9.61

9.5

1-1/4

1-3/8

2-27/32

1-1/4

3-17/32

4-31/32

7-15/32

6-3/8

9-3/4

8-17/32

1-7/32

13.12

12

1-3/8

1-1/2

3-1/8

1-3/8

3-15/16

5-1/2

8-9/32

7-3/32

10-25/32

9-7/16

1-11/32

17.35

16

1-1/2

1-5/8

3-15/32

1-1/2

4-3/16

6-1/4

9-1/4

8-1/2

12-9/16

9-3/4

3/4

27.56

25

1-3/4

2

4-1/16

1-25/32

5

6-7/8

10-7/16

9-3/4

14-9/16

11-21/32

15/16

39.68

30

2

2-1/4

4-21/32

1-31/32

5-3/4

8-5/32

12-3/32

10-3/4

16-3/16

13-5/16

1-1/16

55.12

55

2-1/2

2-3/4

5-23/32

2-9/16

6-1/2

8-3/8

13-1/2

12-3/8

19-3/16

15-5/16

1-5/16

105.82

75

3

3-1/4

6-17/32

2-15/16

7-1/4

10

15-29/32

13

20-7/8

17

1-9/16

154.32

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Diameter (inches) 2"
WLL (Tons) 30
