PULLING FORCE OF CAT MINE VEHICLES (LBS.) |
|
D-8 |
139,000 |
785D |
187,300 |
D-9 |
161,000 |
793F |
230,000 |
D-10 |
225,000 |
795F |
295,600 |
D-11 |
330,600 |
797F |
340,000 |
Stock Number |
Straight-Line Break Strength SLBS (Lbs.) |
Straight-Line Break Strength SLBS (t) |
WLL @5:1 (Lbs.) |
WLL @5:1 (t) |
WLL @3:1 (Lbs.) |
WLL @3:1 (t) |
Eye Length (Inches) |
Eye Diameter (Inches) with SX |
Rope Diameter (Inches) |
Rope Diameter (MM) |
Standard Length (Feet) |
TR-EN-EESX12-UHMPE-5/8-T-O |
84,810 |
38.46 |
16962 |
7.69 |
28270 |
12.8 |
12 |
7/8 |
5/8 |
16 |
20 |
TR-EN-EESX12-UHMPE-3/4-T-O |
113,025 |
51.26 |
22605 |
10 |
37675 |
17 |
12 |
1-1/8 |
3/4 |
19 |
20 |
TR-EN-EESX12-UHMPE-7/8-T-O |
152,790 |
69.3 |
30558 |
14 |
50930 |
23 |
18 |
1-1/4 |
7/8 |
22 |
20 |
TR-EN-EESX18-UHMPE-1-T-O |
173,250 |
78.58 |
34650 |
16 |
57750 |
26 |
18 |
1-1/2 |
1 |
25 |
20 |
TR-EN-EESX18-UHMPE-1-1/4-T-O |
259,050 |
117.5 |
51810 |
24 |
86350 |
39 |
18 |
1-3/4 |
1-1/4 |
32 |
30 |
TR-EN-EESX24-UHMPE-1-1/2-T-O |
354,750 |
160.9 |
70950 |
32 |
118250 |
54 |
24 |
2 |
1-1/2 |
38 |
30 |
TR-EN-EESX24-UHMPE-1-5/8-T-O |
404,250 |
183.3 |
80850 |
37 |
134750 |
61 |
24 |
2-1/8 |
1-5/8 |
41 |
30 |
TR-EN-EESX24-UHMPE-1-3/4-T-O |
502,400 |
227.8 |
100480 |
46 |
167467 |
76 |
24 |
2-1/4 |
1-3/4 |
44 |
30 |
TR-EN-EESX24-UHMPE-2-T-O |
610,335 |
276.8 |
122067 |
55 |
203445 |
92 |
24 |
2-1/2 |
2 |
50 |
30 |
TR-EN-EESX30-UHMPE-2-1/4-V-O |
775,665 |
351.8 |
155133 |
70 |
258555 |
117 |
30 |
2-3/4 |
2-1/4 |
57 |
30 |
TR-EN-EESX36-UHMPE-2-1/2-V-O |
939,510 |
426.1 |
187902 |
85 |
313170 |
142 |
36 |
3 |
2-1/2 |
63 |
30 |
TR-EN-EESX36-UHMPE-2-3/4-V-O |
1,152,360 |
523 |
230472 |
105 |
384120 |
174 |
36 |
3-1/4 |
2-3/4 |
68 |
30 |
TR-EN-EESX36-UHMPE-3-V-O |
1,351,350 |
612.9 |
270270 |
123 |
450450 |
204 |
36 |
3-1/2 |
3 |
76 |
30 |
TR-EN-EESX36-UHMPE-3-1/4-V-O |
1,551,000 |
703.5 |
310200 |
141 |
517000 |
235 |
36 |
3-3/4 |
3-1/4 |
82 |
30 |
TR-EN-EESX36-UHMPE-3-1/2-V-O |
1,828,200 |
829.2 |
365640 |
166 |
609400 |
276 |
36 |
4 |
3-1/2 |
89 |
30 |
*Common sizes are shown, however custom eye sizes, lengths and Tow / Recovery Rope ratings are readily available.

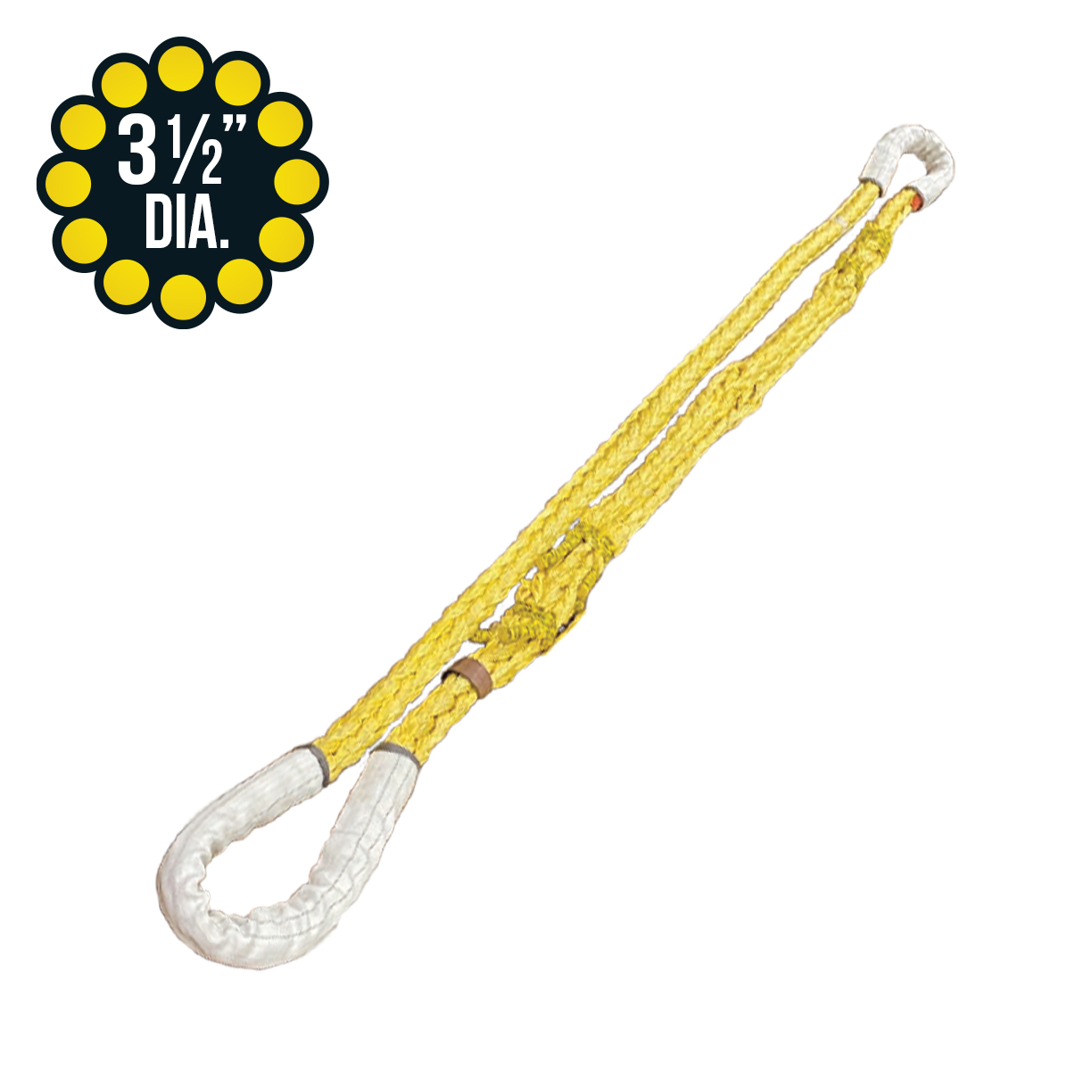

Tubular Cordura® Sleeve (shown above) is standard, Velcro Sleeve available upon request
1. COMPLETE STOCK NUMBER
2. EYE LENGTH: Unless otherwise specified Eye Lengths will be as shown in the chart above.
|
3. ROPE DIAMETER: Unloaded diameter of the bare rope. Splices are approximately two times larger diameter.
4. COVER (Body Sleeve): Style: V for Velcro / T for Tubular (standard) Color: B for Black / O for Orange (standard) (Ask a sales representative about other available options).
5. RECOVERY ROPE LENGTH: Unless otherwise specified: Lengths are measured as bearing to bearing.
|
All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
Warning
See 'Product Resources' tab above for Warning Information
PROP 65 WARNING
Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov
>> Click here for more details <<
Products specifications
Made in USA
|
Yes |
Diameter (inches)
|
3-1/2" |
Eye Length (inches)
|
36" |
SLBS (Lbs.)
|
1,828,200 |
SLBS (t)
|
829.20 |
WLL @ 5:1 (Lbs.)
|
365,640 |
WLL @ 5:1 (t)
|
166 |
WLL @ 3:1 (Lbs.)
|
609,400 |
WLL @ 3:1 (t)
|
276 |
