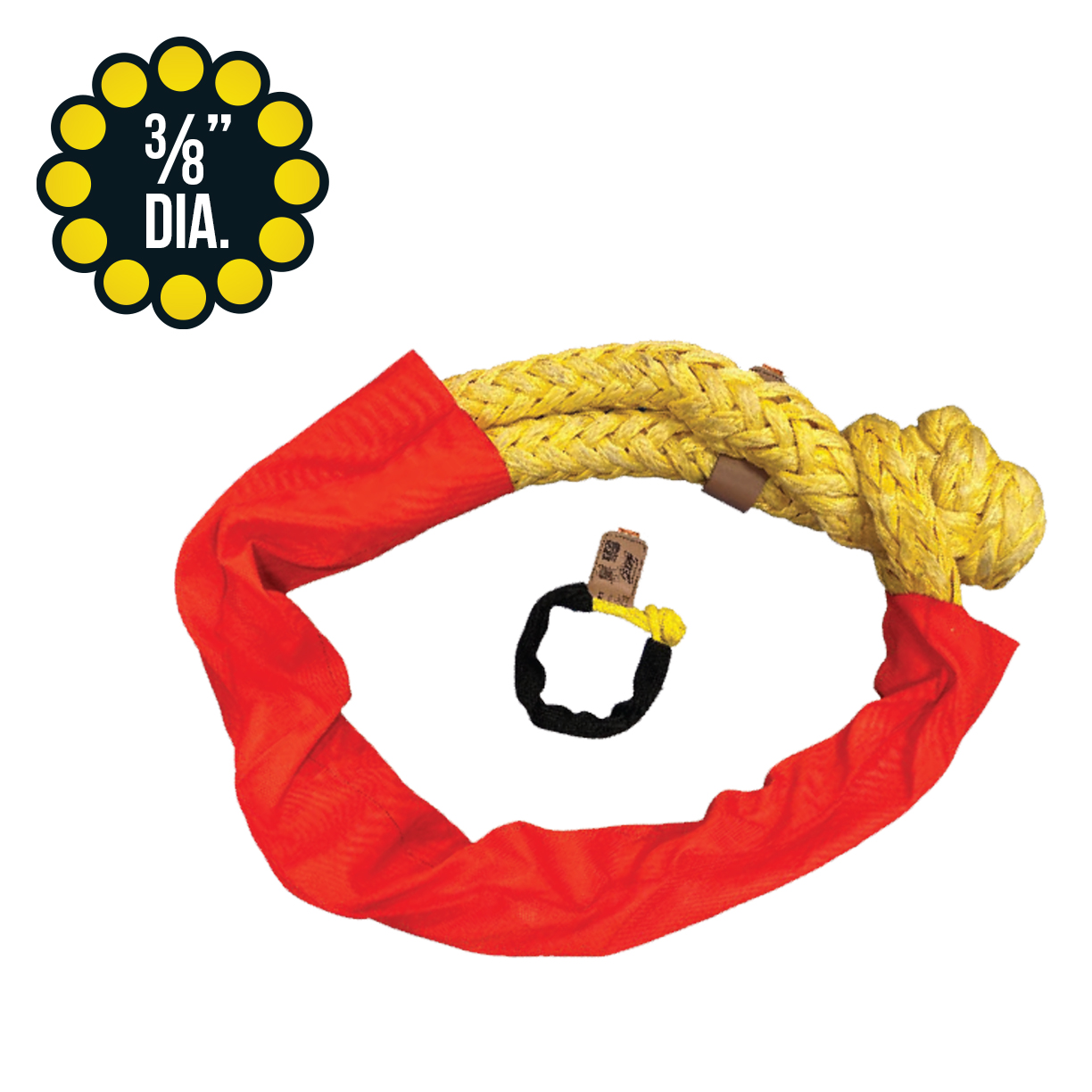

3/8x24" UHMPE Soft Shackles

Manufacturer: Lift-It
Lift-It® Soft Shackles can be used as a lightweight replacement for common heavy metal shackles. Each Lift-It® Soft Shackle is constructed from UHMPE rope and includes Cordura® tubular chafe protection. Lift-It® Soft Shackles are clearly labeled with Work Load Limits, won't rust and do not require three men and a small boy to carry! - Up to 109,500lbs Break - UHMPE PROLINE12 Braided Rope, coated with pigment dye. - Recovery range: Large Truck, SUV and large Overland vehicles. - Fabricated by hand in the U.S.A.
More...
SKU: SSIU-UHMPE-3/8X24
SLBS (Lbs.) 35,000 lbs
SLBS (t) 15.8 t
WLL @ 5:1 (Lbs.) 7,000 lbs
WLL @ 5:1 (t) 3.16 t
WLL @ 3:1 (Lbs.) 11,900 lbs
WLL @ 3:1 (t) 5 t
$71.22
i h
Made in the USA

NEVER use Lift-It® Soft Shackles for lifting.

Lift-It® Soft Shackles must only be used by a qualified person.



Part no.Rope Diameter*Closed LengthStraight-Line
Break
Strength
SLBS1 (Lbs.)		Straight-Line
Break
Strength
SLBS1 (t)		WLL
@5:1
(Lbs.)		WLL
@5:1
(t)		WLL
@3:1
(Lbs.)		WLL
@3:1
(t)		Weight (Lbs.)
(In.)(MM)(In.)(M)
SSIU-UHMPE-5/16X245/166240.612400010.948002.1800043
SSIU-UHMPE-3/8X243/89240.613500015.870003.161190053
SSIU-UHMPE-7/16X247/1611240.614050018.381003.661350063
SSIU-UHMPE-1/2X301/212300.614300019.586003.91440073
SSIU-UHMPE-9/16X309/1614300.616700030.3134006.0622300103
SSIU-UHMPE-5/8X365/816360.767500034150006.825000114
SSIU-UHMPE-3/4X363/418360.769100041.2182008.2430000146
SSIU-UHMPE-7/8X407/822401.0210950049.6219009.9236600177
SSIU-UHMPE-1X60125601.5213500061.22700012.2445000208
SSIU-UHMPE-1-1/8X601-1/829601.5216940076.83388015.36564672610
SSIU-UHMPE-1-1/4X721-1/432721.83241000109.34820021.86800003612
SSIU-UHMPE-1-1/2X721-1/238721.83370000167.87400033.561240005615
SSIU-UHMPE-1-3/4X721-3/445721.83500000226.710000045.341660007618
SSIU-UHMPE-2X72250721.83625000283.412500056.682080009422
SSIU-UHMPE-2-1/2X962-1/264962.44800000362.816000072.5626600012130

1SLBS is based upon destruction testing done in laboratory testing conditions which will NEVER be duplicated during your actual usage.
SLBS is also based upon the product being in a NEW and UNUSED condition

*Referenced Rope Diameter must not be used for determination of connection points or fitment. Finished Soft Shackle body diameter will be at least twice (2X) the Rope Diameter, and will exceed 3X the rope diameter at the base of the knot.



endless rope slingendless rope slingendless rope sling

Lift-It® Soft Shackle Installation Instructions (same procedure for all sizes)

To open the Soft Shackle, hold the base of the Noose and pull the rope that forms the Noose to expand it. To disengage, Lift the Noose over the Knot.Pass the Soft Shackle Body through the connection points.
Ensure that connection points will not damage the Soft Shackle.

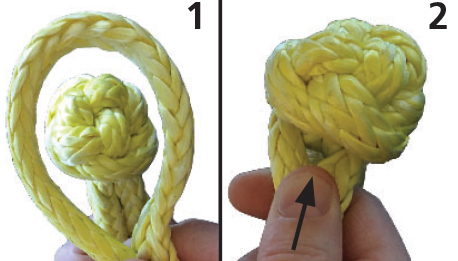

Do not allow twists in the Body.		To close the Soft Shackle, place the Noose over the Knot (1) and cinch the Noose securely around the Body and against the base of the Knot (2). Always ensure that Sleeves are properly placed and that the Noose is connected at the base of the Knot.
NEVER attach the base of the Noose, the Noose or the Knot to connection points. NEVER shock load Recovery Products and always remember, Slow & Steady!
All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Made in USAYes
Diameter (inches)3/8"
Closed Length (inches)24
SLBS (Lbs.)35,000
SLBS (t)15.8
WLL @ 5:1 (Lbs.)7,000
WLL @ 5:1 (t)3.16
WLL @ 3:1 (Lbs.)11,900
WLL @ 3:1 (t)5
Products specifications
Product Resources
Product ResourceProduct Spec Recovery Products User Guide
