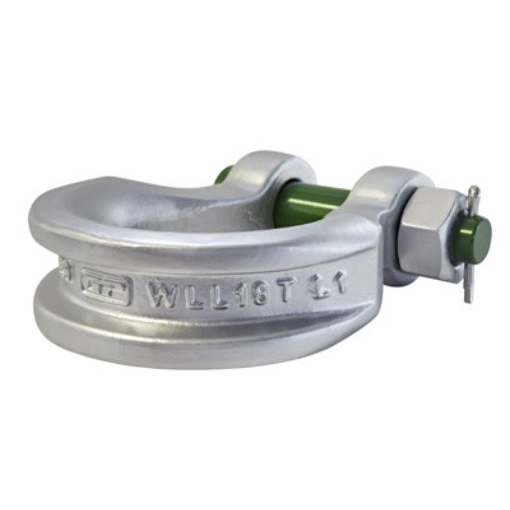

4 11/32" Van Beest® P-6033 Wide Body Sling Shackles | 200 Ton

Wide Body Shackle Material: Bow and pin: High tensile steel, Grade 8 quenched and tempered. Van Beest® wide body shackles are upset forged with no drop forge flashing marks. Van Beest® wide body shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These wide body shackles also have a super smooth galvanized finished.
More...
SKU: 4-11/32" - 200 ton
WLL (Tons) 200 t
$5,783.39
i h

Material

Bow and pin: High tensile steel, Grade 8 quenched and tempered

Design Factor

5/1

Finish

Painted: Shackle bow-Silver, Shackle pin-Green

Temperature Range

-4°F (-20°C) to +392°F (200°C)

Certification

No extra charge for 3.1 material, proof test or EC declaration of conformity certificates. DNV 2.7-1 certification available for 2 ton and larger shackles.

Note

For additional dimensional and tolerance information, CAD drawings are available on request.







Dimensions (Inches)







Work
Load
Limit
(t)

Diameter

Width

Length

Thickness

Bearing
Surface

Unit

Weight
(Lbs.)

Bow
a

Pin
b

Eye
c

Eye
d

Inside
e

Bow
g

Overall
j

Inside
f

Overall
h

Bolt
i

Nut
k


l

18

1-3/8

1-3/8

2-23/32

1-3/16

2-1/8

4-1/32

7-3/32

5-13/16

9-13/32

6-25/32

1-5/32

2-17/32

18

30

1-9/16

1-21/32

3-17/32

1-3/8

2-23/32

4-31/32

7-7/8

6-1/2

10-31/32

8-5/32

1-11/32

3-1/8

29

40

2-5/32

2

4-9/32

1-25/32

3-5/16

5-1/2

9-1/4

7-27/32

13-1/32

9-29/32

1-1/2

3-13/16

46

55

2-3/8

2-1/4

4-17/32

2-5/32

3-17/32

6-5/16

10-5/8

9-7/16

15-5/16

11-9/16

1-25/32

3-15/16

66

75

2-11/16

2-3/4

4-29/32

2-1/8

4-11/32

7-9/32

12-15/32

11-13/32

18-5/8

12-7/8

2-1/8

4-23/32

106

125

3-11/32

3-5/32

6-1/16

3-11/32

5-13/32

8-21/32

15-11/32

14-13/32

22-15/16

16-25/32

2-17/32

5-29/32

203

150

3-11/16

3-3/4

7-1/16

3-1/2

5-25/32

9-31/32

17-3/32

15-13/32

25-13/32

17-1/8

1-31/32

6-11/16

309

200

4-11/32

4-1/8

7-27/32

3-15/16

6-7/32

11-1/32

18-31/32

18-15/16

29-7/8

18-1/2

1-31/32

8-1/16

452

250

4-31/32

4-23/32

8-15/16

4-11/32

7-1/16

11-13/16

20-7/8

21-11/32

33-13/16

20-7/16

2-3/8

9-7/16

582

300

5-5/16

5-9/32

9-21/32

4-13/16

7-11/16

13-25/32

24-13/32

23-21/32

37-9/32

22-5/8

2-3/4

10-7/16

794

400

6-5/16

6-5/16

11-17/32

5-23/32

9-3/32

14-9/16

27-5/32

22-11/16

38-25/32

26-9/16

3-5/32

12-19/32

1279

500

6-11/16

7-3/32

12-29/32

6-5/16

10-11/32

17-23/32

31-3/32

26-13/16

44-17/32

29-7/16

3-17/32

13-11/32

1720

600

7-15/32

7-7/8

13-11/16

6-11/16

11-3/8

19-9/32

34-1/16

29-3/16

48-19/32

31-27/32

3-15/16

14-9/16

2161

700

7-7/8

8-15/32

15-7/16

7-15/32

12-13/32

21-1/4

35-15/32

29-9/16

50-9/16

34-19/32

3-15/16

15-3/4

2998

800

8-19/32

9-1/16

16-17/32

7-7/8

13-15/32

21-13/16

37-9/32

33-1/2

56-5/32

37-3/32

4-11/32

16-17/32

3153

900

9-17/32

10-1/32

18-11/32

8-21/32

14-1/2

22-27/32

40-9/32

33-1/2

58-19/32

40-9/32

4-23/32

17-5/16

3638

1000

10-1/4

10-5/8

19-9/32

9-7/16

15-23/32

24-3/16

43-19/32

33-1/2

60-5/16

43-7/16

4-23/32

18-1/8

6548

1250

11-7/32

11-13/16

20-3/32

10-1/4

17-25/32

25-19/32

46-17/32

36-21/32

65-19/32

48-5/16

5-29/32

20-7/8

8157

1550

11-7/32

12-19/32

21-21/32

11-1/32

19-1/32

26-25/32

49-11/32

37-13/32

67-5/16

51-3/16

5-29/32

22-1/16

8818

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Diameter (inches) 4-11/32"
WLL (Tons) 200
