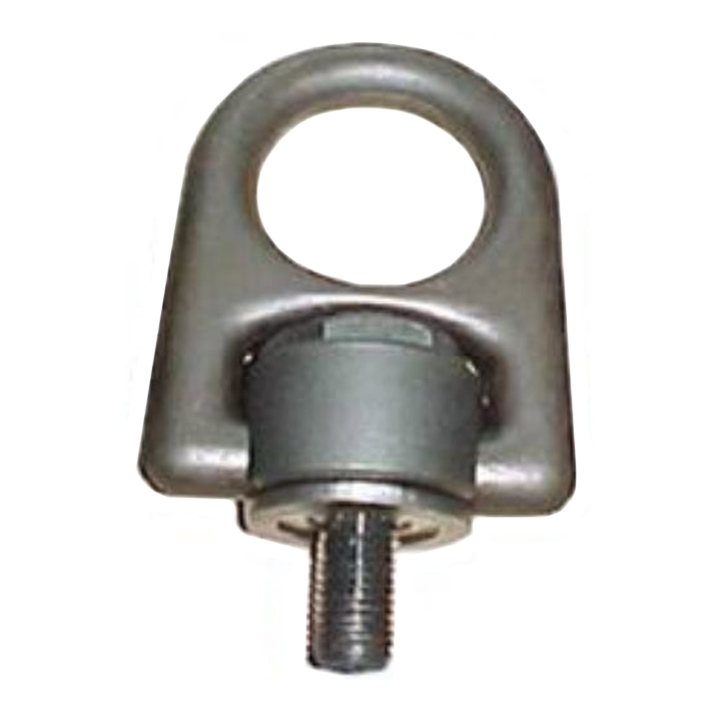

Actek® Metric Forged Swivel Hoist Ring

Manufacturer: Actek

Actek® Metric Forged Swivel Hoist Ring Specifications and Information

More...

Shop available products below Shop all 0types

Made in the USA

Overview
Specifications
Product Resources
Contact Us

All Hoist Rings are Proof Tested to 200% Work Load Limit
Swivels 360° - Pivots 180°
Material: Aircraft Quality Alloy
Finish: Phosphate Per Dod-P-16232f
Cadmium Plated, Electroless
Nickel, and Galvanized Available.
Design Factor: 5:1
Magnetic Particle Inspected
Certified Heat Treatment
Ideal For Outdoor Use

Hoist Ring Diagram

METRIC - FORGED swivel hoist RING SPECIFICATIONS (Millimeters)
Stock Number	Work Load Limit(Kgs.)	Thread Size	A	B	C	D	E	F	G	Torque (N-m)	Weight (Lbs.)
56912	400	M8X1.25	33.52	35.56	29.46	11.17	15	83.56	60.45	9	1
56914	400	M8X1.25	33.52	35.56	29.46	11.17	20	83.56	60.45	9	1
56916	500	M10X1.50	33.52	35.56	29.46	11.17	15	83.56	60.45	16	1
56918	500	M10X1.50	33.52	35.56	29.46	11.17	25	83.56	60.45	16	1
56923	1,050	M12X1.75	56.64	60.96	50.03	19.05	20	142.24	102.87	37	4
56924	1,050	M12X1.75	56.64	60.96	50.03	19.05	25	142.24	102.87	37	4
56926	1,050	M12X1.75	56.64	60.96	50.03	19.05	35	142.24	102.87	37	4
56928	1,050	M14x2.00	56.64	60.96	50.03	19.05	30	142.24	102.87	40	4
56930	1,900	M16x2.00	56.64	60.96	50.03	19.05	25	142.24	102.87	80	4
56932	1,900	M16x2.00	56.64	60.96	50.03	19.05	35	142.24	102.87	80	4
56936	2,150	M20X2.50	56.64	60.96	50.03	19.05	25	142.24	102.87	135	4
56937	2,150	M20X2.50	56.64	60.96	50.03	19.05	35	142.24	102.87	135	4
56938	2,150	M20X2.50	56.64	60.96	50.03	19.05	40	142.24	102.87	135	4
56942	3,000	M20X2.50	74.93	81.28	66.54	25.40	30	189.99	137.16	135	9
56946	4,200	M24X3.00	74.93	81.28	66.54	25.40	30	189.99	137.16	311	9
56948	4,200	M24X3.00	74.93	81.28	66.54	25.40	40	189.99	137.16	311	9
56949	4,500	M30X3.50	74.93	81.28	66.54	25.40	40	189.99	137.16	637	9
56950	4,500	M30X3.50	74.93	81.28	66.54	25.40	50	189.99	137.16	637	9
56956	7,000	M30X3.50	94.74	101.60	83.31	31.75	50	237.49	171.45	637	19
56958	7,000	M30X3.50	94.74	101.60	83.31	31.75	65	237.49	171.45	637	19
56960	7,000	M33X3.50	94.74	101.60	83.31	31.75	55	237.49	171.45	637	19
56966	11,000	M36X4.00	94.74	101.60	83.31	31.75	65	237.49	171.45	1085	20
56968	12,500	M42X4.50	94.74	101.60	83.31	31.75	80	237.49	171.45	1085	21

Dimensions are subject to change without notice.

See "Actek Saftey Warning " For Important Safety, Use and Inspection Infromation.

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Made in USA	Yes

Products specifications

Product Resources
Product Resource	Actek Safety Warning
