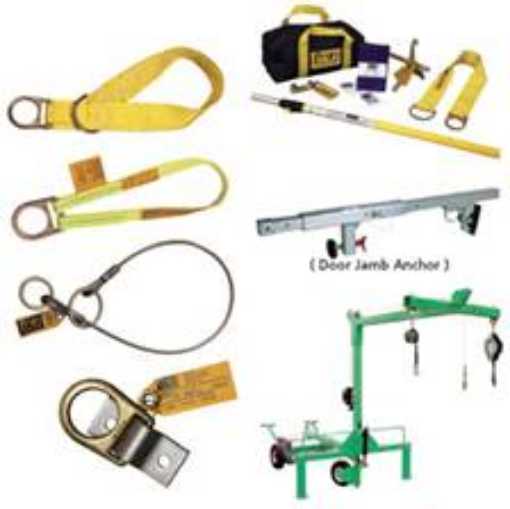

    Anchorage Connectors

    Call for price

    DBI-SALA offers the widest range of Anchorage Connectors which combine ease of use, lightweight materials and a 5,000 Lbs. minimum tensile tensile strength to meet or exceed OSHA and ANSI Z359.1 requirements. CE and CSA compliant models are also available.

    SECURITY TO MATCH THE TASK
    Anchorage connectors are selected to suit the specific requirements of the user, based upon: the type of attachment, the environment and the connecting system. DBI-SALA offers the most complete line of anchorage connectors available, rigorously tested to ensure the strength you need.



    ANCHORAGES
    An anchorage is a secure point of attachment for the fall arrest system. The anchorage must be capable of supporting a load of 5,000 Lbs. per worker attached to the anchorage or shall be designed, installed and used as part of a complete personal fall arrest system which maintains a minimum design factor of 2.



    Anchorages may be certified, designed or engineered on site for fall protection. Certified anchorages should be identified with paint or special markings and kept on a site location list. Non-certified Anchorages are beams, trusses or other suitably strong structures.



    ANCHORAGE CONNECTORS
    Anchorage connectors provide a means of attaching the fall arrest system to the anchorage. Anchorage Connectors vary widely depending on application. Some of the more popular anchorage connectors are Anchor Slings, Roof Anchors, Beam Clamps, Rail Sliders, Trolleys, Eyebolts and Shepherd Hooks.





    DBI-SALA offers the widest range of Anchorage Connectors which combine ease of use, lightweight materials and a 5,000 Lbs. minimum tensile tensile strength to meet or exceed OSHA and ANSI Z359.1 requirements. CE and CSA compliant models are also available.

    ANCHORAGE CONNECTORS SPECIFICATIONS

    Product

    Description

    Stock Number

    Additional Information

    Tie-Off Adaptor

    Pass thru design provides a safe and easy way to anchor a fall protection device to an overhead location
    and beyond normal reach.
    1-3/4" polyester strap, 3" wear guard, zinc plated, steel hardware.

    1003000

    3 Ft. length

    1002103

    3 Ft. length (Adjustable)

    1003006

    6 Ft. length

    1002106

    6 Ft. length (Adjustable)

    Scaffold Choker

    1" polyester webbing, 17" length fits 3" maximum diameter structure, zinc plated, steel hardware.

    1201390

    17 in. length

    Cable Choker

    Pass thru design, (7x19) 3/8" stainless steel cable, dual O-ring pass through, zinc plated, steel hardware.

    5900550

    4 Ft. length

    5900551

    6 Ft. length

    D Ring and
    Anchorage Plate

    Bolted or weld on,
    two 1/2" attachment holes,
    1/4"x 2"x 4-1/4"

    2101630

    Stainless Steel Plate,
    D-Ring, zinc plated

    2101634

    Raw steel

    2101632

    Painted

    2101636

    All Stainless Steel

    First-Man-Up™
    System

    Provides a complete system to mount a tie-off adapter to an overhead anchorage.

    2104519

    6 Ft. to 12 Ft. Adjustable Pole

    2104520

    8 Ft. to 16 Ft. Adjustable Pole

    2104527

    6 Ft. to 12 Ft, 3600 Lbs. Hook

    2104528

    8 Ft. to 16 Ft., 3600 Lbs. Hook

    2104530

    6 Ft. to 12 Ft., 3600 Lbs. and Original Hook

    2104531

    8 Ft. to 16 Ft., 3600 Lbs. and Original Hook

    2104522

    Snap Hook Connector Tool, Original Hook

    2104529

    Snap Hook Connector Tool, 3,600 Lbs.

    Door Jamb Anchor

    Non-penetrating anchor designed to install against door or window jambs. Fits opening sizes 21.5" to 51.5", weighs 14 lbs.

    2100080

    Fits openings from
    21.5" to 51.5"

    Perimeter Limiter

    Provides a non-penetrating anchor or tie-off point for personnel performing work on concrete decking operations or similar type applications.

    2100090

    Overhead Anchorages for 2 users - Reduces the fall distance and minimizes swing falls.



    All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
