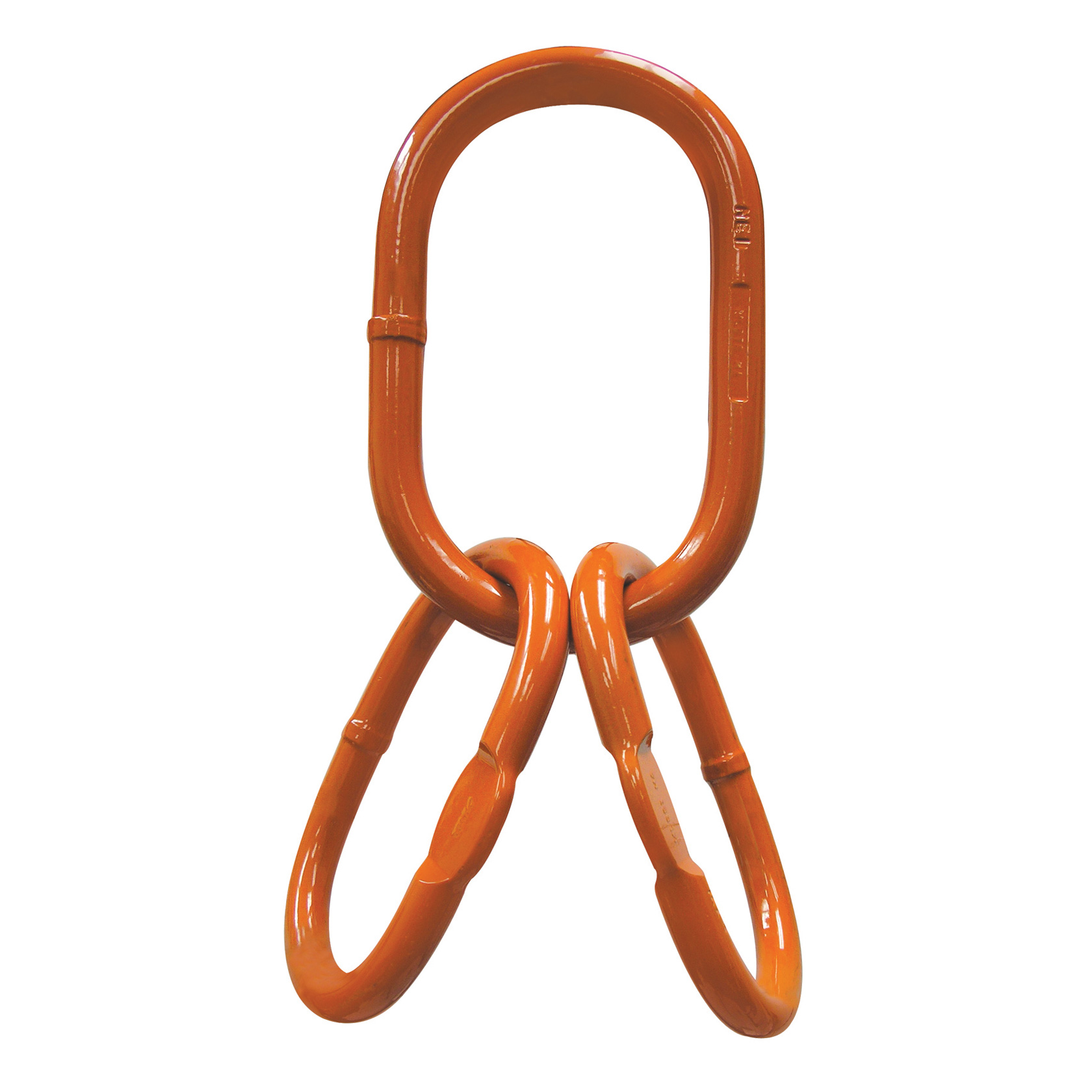

    CM Masterlinks With Subassemblies (And Flats)

    Call for price
    *

    Designed to accept Herc-Alloy 800 chain, wire rope and synthetic slings.

    Product Specs Box
    • Designed to accept Herc-Alloy 800 chain, wire rope and synthetic slings
    • Durable orange powder coated finish
    • 100% proof tested
    • May be used for mechanical and welded sling assemblies
    • Extra wide body for wire rope applications
    • Sizes up to 1-¼” intermediate links available with flats to accommodate Omega Link





    MASTERlinks with SUBASSEMBLIES (and FLATS) SPECIFICATIONS

    Trade

    Size

    (Inches)

    Work

    Load

    Limit

     (Lbs.)*

    Stock

    Number

    Masterlink Nominal Dimensions (Inches)

    Sub-Assy. Nominal Dimensions (Inches)

    Unit

    Weight

    (Lbs.)

    Material

    Diameter

    A

    Inside

    Length

    B

    Inside

    Width

    C

    Material

    Diameter

    D

    Inside

    Length

    E

    Inside

    Width

    F

    1/2

    4,600

    MSA050

    .562

    4.84

    2.69

    .437

    4.13

    2.29

    1.8

    5/8

    7,200

    MSA063

    .625

    5.29

    2.98

    .512

    4.84

    2.69

    2.9

    3/4

    11,200

    MSA075

    .750

    6.61

    3.72

    .625

    5.29

    2.98

    5

    7/8

    13,840

    MSA087

    .875

    7.35

    4.14

    .625

    5.29

    2.98

    6.3

    1

    21,200

    MSA100

    1

    7.53

    4.30

    .750

    6.61

    3.72

    9.9

    1-1/4

    29,920

    MSA125

    1.25

    9.26

    5.29

    1

    7.53

    4.30

    19.9

    1-1/2

    42,400

    MSA150

    1.50

    11.03

    6.30

    1

    7.53

    4.30

    26.5

    1-3/4

    57,720

    MSA175

    1.75

    12.86

    7.35

    1.25

    9.26

    5.29

    44

    2

    75,360

    MSA200

    2

    14.70

    8.40

    1.50

    11.03

    6.30

    71

    2-1/4

    95,360

    MSA225

    2.25

    16.54

    9.45

    1.75

    12.86

    7.35

    105

    2-1/2

    117,720

    MSA250

    2.50

    18.38

    10.50

    1.75

    12.86

    7.35

    126

    2-3/4

    142,400

    MSA275

    2.75

    20.21

    11.55

    2

    14.70

    8.40

    177

    3

    192,680

    MSA300

    3

    18.90

    11.03

    2.25

    16.54

    9.45

    224

    3-1/4

    226,120

    MSA325

    3.25

    20.48

    11.94

    2.50

    18.38

    10.50

    295

    3-1/2

    262,240

    MSA350

    3.50

    22.05

    12.86

    2.75

    20.21

    11.55

    381

    *Work Load Limit is based upon a 5 to 1 Design Factor.

    See "Warning CM Sling & Fitting" For Important Safety, Use and Inspection Infromation.
