    GN Master Link - Type SC1

    Call for price

    High Strength Alloy Steel Design Factor: 5 to 1 Finish: Painted

    Material: High Strength Alloy Steel
    Design Factor: 5 to 1
    Finish: Painted
    Standard Certificates:
    3.1B Material
    Manufacturer
    Proof Test

    GN MASTER LINK - TYPE SC1 SPECIFICATIONS

    Stock Number

    WLL
    (Tons)

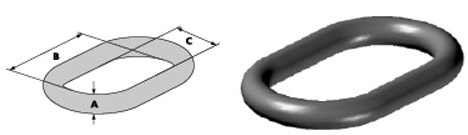

    DIMENSIONS (Inches)

    Weight
    (Lbs.)

    A

    B

    C

    12220000

    4

    .87

    6.30

    3.54

    3

    12260000

    6

    1.02

    7.09

    3.94

    5

    12320000

    8

    1.26

    7.87

    4.33

    9

    12360000

    13

    1.42

    10.24

    5.51

    14

    12450000

    21

    1.77

    13.39

    7.09

    29

    12510000

    29

    2.01

    13.78

    7.48

    37

    12570000

    38

    2.24

    15.75

    7.87

    55

    12630000

    46

    2.48

    16.93

    9.06

    71

    12720000

    67

    2.83

    17.32

    9.84

    101

    12800000

    84

    3.15

    17.72

    9.84

    137

    12900000

    105

    3.54

    18.11

    11.81

    165

    12910000

    126

    3.94

    19.69

    11.81

    227

    12912500

    200

    4.53

    23.62

    15.75

    419

    12912510

    240

    4.53

    23.62

    11.81

    353

    12913500

    304

    4.53

    27.56

    9.84

    364

    12914000

    304

    4.53

    19.29

    9.84

    293

    Tolerance + 5%
    Dimensions subject to change without notice.
    Ton = 2000 Lbs.
