    Van Beest® G-4163 Bolt, Nut & Cotter Anchor Shackles

    Call for price
    SKU: G-4163
    *

    Material: Bow and pin: High tensile steel, Grade 6 quenched and tempered Van Beest® shackles are upset forged with no drop forge flashing marks. Van Beest® shackles have embossed information vs. raised sharp lettering which is ideal for synthetic lifting slings. These shackles also have a super smooth galvanized finished.

    Material

    Bow and pin: High tensile steel, Grade 6 quenched and tempered

    Design Factor

    6/1

    Standards

    U.S. Federal Specification RR-C-271 IVA, Class 3, Grade A, EN 13889

    Finish

    Hot dip galvanized

    Temperature Range

    -4°F (-20°C) to +392°F (200°C)

    Certification

    No extra charge for 3.1 material, proof test or EC declaration of conformity certificates. DNV 2.7-1 certification available for 2 ton and larger shackles.

    Note

    For additional dimensional and tolerance information, CAD drawings are available on request.

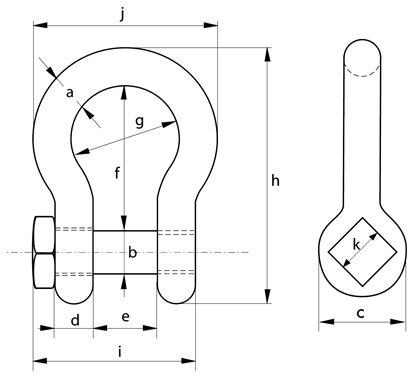

    Dimensions (Inches)





    Work
    Load
    Limit
    (t)

    Diameter

    Width

    Length

    Thickness

    Unit

    Weight
    (Lbs.)

    Bow
    a

    Pin
    b

    Eye
    c

    Eye
    d

    Inside
    e

    Bow
    g

    Overall
    j

    Inside
    f

    Overall
    h

    Bolt
    i

    Nut
    k

    0.5

    1/4

    5/16

    21/32

    9/32

    15/32

    25/32

    1-11/32

    1-5/32

    1-29/32

    1-21/32

    5/32

    0.13

    0.75

    5/16

    3/8

    25/32

    11/32

    17/32

    7/8

    1-9/16

    1-1/4

    2-7/32

    1-31/32

    3/16

    0.25

    1

    3/8

    7/16

    7/8

    13/32

    21/32

    1-1/32

    1-13/16

    1-7/16

    2-1/2

    2-3/8

    5/16

    0.34

    1.5

    7/16

    1/2

    1-1/32

    7/16

    3/4

    1-5/32

    2

    1-11/16

    2-29/32

    2-5/8

    7/16

    0.48

    2

    1/2

    5/8

    1-11/32

    1/2

    7/8

    1-1/4

    2-9/32

    2

    3-1/2

    3-7/32

    1/2

    0.92

    3.25

    5/8

    3/4

    1-9/16

    5/8

    1-1/16

    1-11/16

    2-15/16

    2-17/32

    4-11/32

    3-27/32

    21/32

    1.62

    4.75

    3/4

    7/8

    1-13/16

    3/4

    1-7/32

    2

    3-1/2

    3

    5-3/32

    4-1/2

    3/4

    2.59

    6.5

    7/8

    1

    2-1/16

    7/8

    1-13/32

    2-9/32

    4-1/32

    3-9/32

    5-21/32

    5-1/8

    7/8

    3.9

    8.5

    1

    1-1/8

    2-5/16

    31/32

    1-11/16

    2-11/16

    4-21/32

    3-3/4

    6-15/32

    5-29/32

    31/32

    5.69

    9.5

    1-1/8

    1-1/4

    2-19/32

    1-3/32

    1-27/32

    2-15/16

    5-5/32

    4-1/4

    7-9/32

    6-17/32

    1-1/16

    8.06

    12

    1-1/4

    1-3/8

    2-27/32

    1-1/4

    2

    3-9/32

    5-25/32

    4-17/32

    7-29/32

    7

    1-3/16

    10.81

    13.5

    1-3/8

    1-1/2

    3-5/32

    1-3/8

    2-1/4

    3-5/8

    6-3/8

    5-1/4

    8-15/16

    7-3/4

    1-5/16

    14.42

    17

    1-1/2

    1-5/8

    3-15/32

    1-1/2

    2-3/8

    3-29/32

    6-7/8

    5-3/4

    9-13/16

    7-15/16

    3/4

    18.06

    25

    1-3/4

    2

    4-1/16

    1-25/32

    2-29/32

    4-31/32

    8-1/2

    7

    11-13/16

    9-13/16

    29/32

    31.34

    35

    2

    2-1/4

    4-3/8

    1-31/32

    3-9/32

    5-7/16

    9-3/8

    7-3/4

    13-1/32

    10-19/32

    1-1/32

    43.77

    42.5

    2-1/4

    2-9/16

    5-1/8

    2-1/4

    3-3/4

    6-5/16

    10-23/32

    8-3/4

    14-27/32

    11-27/32

    1-5/32

    62.46

    55

    2-1/2

    2-3/4

    5-23/32

    2-9/16

    4-1/8

    7-3/32

    12-7/32

    10-1/4

    17-1/16

    13

    1-1/4

    87.27

    85

    3

    3-1/4

    6-3/8

    2-7/8

    5

    7-15/32

    13-3/8

    12-15/16

    20-3/4

    14-31/32

    1-17/32

    136.69





    All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
