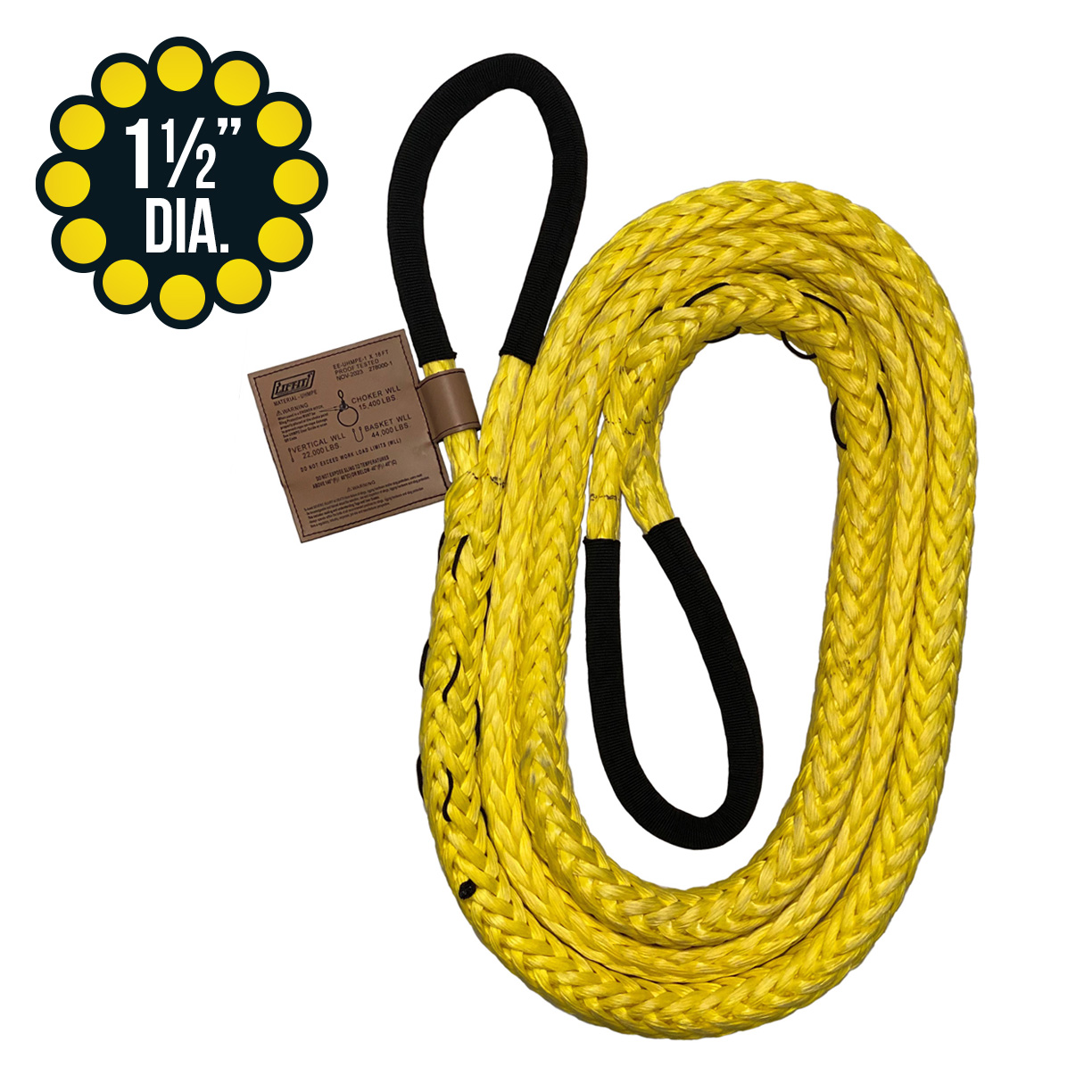

1-1/2" UHMPE PROLINE12™ Rope Slings - Eye & Eye

Manufacturer: Lift-It

When compared to Wire Rope Slings, Lift-It® PROLINE12® UHMPE Synthetic Rope Slings offer:

  • Superior strength-to-weight ratio.
  • Excellent bending fatigue.
  • Similar elongation properties at approximately 1%.
  • Will not sink, UHMPE Slings float!
  • 1/7 the weight of Wire Rope Slings.
  • Non corrosive, do not require lubrication.
  • Easy to inspect.

UHMPE Rope is treated to provide protection against
abrasion and UV light degradation.

More...
SKU: EE-UHMPE-1-1/2
*
Choker WLL (Lbs) 30,900
Vertical WLL (Lbs) 44,200
90° Basket WLL (Lbs) 88,400
$670.50
i h
Fabrication Time: 8-11 days
Made in the USA

Bulked Nylon (Cordura®) Eye Sleeves are provided at no additional charge in all sling eyes.

SX Eye Sleeves are provided for an additional charge and combine the light weight and non-absorbing UHMPE properties into a braided sleeve.

Dyneema® Eye Sleeves are available for an additional charge and are more cut resistant than Cordura® and/or SX Eye Sleeves.



Body covers are provided for an additional charge and may prevent abrasion damage and the penetration of dirt and debris into the rope fibers. Velcro® closure enables easy installation and removal, streamlining sling inspection. Body Covers are captivated at each sling end by Retainer Straps which prevent the cover from shifting.



Rope Diameter (Inches) Rope Diameter (mm)  Stock Number Working Load Limits (Lbs.)  Sling Weight Based on Min. Length (Lbs.) Rope Weight    Per Adder   Foot (Lbs.)  Minimum Sling Length (Bearing) Feet-Inches
Choker Vertical 90° Basket
1/4" 6mm EE-UHMPE-1/4 1,120 1,600 3,200 0.1 0.02 2'-2"
5/16" 8mm EE-UHMPE-5/16 1,630 2,300 4,600 0.2 0.03 2'-10"
3/8" 9mm EE-UHMPE-3/8 2,450 3,500 7,000 0.2 0.04 3'-4"
7/16" 11mm EE-UHMPE-7/16 2,940 4,200 8,400 0.2 0.04 3'-10"
1/2" 12mm EE-UHMPE-1/2 4,380 6,200 12,400 0.5 0.06 4'-5"
9/16" 14mm EE-UHMPE-9/16 5,300 7,500 15,000 0.6 0.08 5'
5/8" 16mm EE-UHMPE-5/8 7,190 10,200 20,400 1.1 0.11 5'-7"
3/4" 18mm EE-UHMPE-3/4 9,590 13,700 27,400 1.4 0.13 6'-7"
7/8" 22mm EE-UHMPE-7/8 12,900 18,500 37,000 2.8 0.2 7'-10"
1" 24mm EE-UHMPE-1 15,400 22,000 44,000 3.5 0.23 8'-10"
1-1/8" 28mm EE-UHMPE-1-1/8 20,500 29,400 58,800 5.1 0.32 10'-1"
1-1/4" 30mm EE-UHMPE-1-1/4 23,100 33,000 66,000 6.8 0.36 11'
1-1/2" 36mm EE-UHMPE-1-1/2 30,900 44,200 88,400 11.4 0.52 13'-2"
1-5/8" 40mm EE-UHMPE-1-5/8 40,700 58,000 116,000 15.8 0.66 14'-6"
1-3/4" 44mm EE-UHMPE-1-3/4 43,900 62,000 124,000 20.3 0.78 15'-8"
2" 48mm EE-UHMPE-2 49,700 71,000 142,000 26.4 0.91 17'-7"
2-1/8" 52mm EE-UHMPE-2-1/8 59,900 85,000 170,000 33.8 1.1 18'-11"
2-1/2" 60mm EE-UHMPE-2-1/2 74,200 106,000 212,000 54.8 1.5 22'-1"
2-3/4" 68mm EE-UHMPE-2-3/4 92,400 132,000 264,000 91.6 1.9 24'-6"
3" 72mm EE-UHMPE-3 109,200 156,000 312,000 119.8 2.1 26'-6"
3-1/4" 80mm EE-UHMPE-3-1/4 131,600 188,000 376,000                                                                       28'-11"
3-1/2" 84mm EE-UHMPE-3-1/2 155,100 221,000 442,000 30'-11"
3-5/8" 88mm EE-UHMPE-3-5/8 175,000 250,000 500,000 32'-1"
3-3/4" 92mm EE-UHMPE-3-3/4 184,300 263,000 526,000 33'-4"
4" 96mm EE-UHMPE-4 212,800 304,000 608,000 35'-4"
4-1/2" 108mm EE-UHMPE-4-1/2 255,700 365,000 730,000 39'-8"
5" 120mm EE-UHMPE-5 289,700 413,000 826,000 44'-1"
5-1/2" 132mm EE-UHMPE-5-1/2 349,600 499,000 998,000 48'-6"
6"  144mm EE-UHMPE-6 409,000 585,000 1,170,000 52'-11"
6-1/2" 156mm EE-UHMPE-6-1/2 469,000 670,000 1,340,000 57'-5"
7" 168mm EE-UHMPE-7 529,000 750,000 1,500,000 61'-10"
7-1/2" 180mm EE-UHMPE-7-1/2 589,000 840,000 1,680,000 66'-2"
8" 192mm EE-UHMPE-8 649,000 920,000 1,840,000 70'-7"

Do not use Lift-It® PROLINE12® UHMPE Rope Slings in contact with objects or at temperatures above 140°F (60°C) or below -40°F (-40°C).

Choke point protection for UHMPE Rope Slings is mandatory!

When UHMPE Rope Slings are used in a choker hitch, protection MUST be properly placed at the choke point to reduce friction and prevent rope-on-rope damage. Endless UHMPE Rope Slings will require additional or larger protection devices to cover all rope components at the choke point.

The protection must always be of sufficient strength, thickness and construction, such as but not limited to Cornermax® Sleeve (depicted).

A qualified person and/or properly informed and trained consumer must determine protection adequacy.

Bulked Nylon (Cordura®) Eye Sleeves are provided at no additional charge on all PROLINE12® Sling eyes.

SX Eye Sleeves are provided for an additional charge and combine the light weight and non-absorbing UHMPE properties into a braided sleeve.

Dyneema® Eye Sleeves are available for an additional charge and are more cut resistant than Cordura®
and/or SX Eye Sleeves.

Body covers are provided for an additional charge and may prevent abrasion damage and the penetration of dirt and debris into the rope fibers. YKK® No. 10c Heavy Duty Marine Grade Zipper closure enables easy installation and removal, streamlining sling inspection. Body Covers are captivated at each sling end by Retainer Straps which prevent the cover from shifting.

All covers feature tags, which include stock number and serial number for ease of identification and re-ordering.

MATERIAL CHOICES:

Cordura® Fabric

Cordura® with Inner Vinyl

See the User Guide that accompanies PROLINE12® slings for Important Safety, Use and Inspection Information.

PROLINE12TM UHMPE Adjustable Rope Slings replace multiple, “non-adjustable” slings by accommodating a range of dimensional requirements with infinite adjustability. Available in single, double, three and four leg configurations, PROLINE12TM UHMPE Adjustable Rope Slings are made from single braid, twelve strand, low elongation high performance synthetic rope. Stock lengths are shown below, however custom lengths and adjustment ranges are readily available.

UHMPE Adjustable Rope Slings provide higher Work Load Limits than standard, polyester adjustable rope slings. PROLINE12TM PROLINE12TM UHMPE Adjustable Rope Slings are treated with a coating to enhance abrasion and UV degradation resistance.

Lift-It® PROLINE12TM UHMPE Adjustable Rope Slings feature wear protection sleeves in the lift and connection eyes.

REFER TO THE SPECIFIC PRODUCT SAFETY BULLETIN (CURRENT REV) FOR IMPORTANT, ADDITIONAL INSPECTION CRITERIA.

For slings and rigging hardware refer to OSHA, ASME and manufacturer's inspection and removal information.

The use of damaged Recovery Products, slings, rigging hardware and/or protection may result in SEVERE INJURY or DEATH.
The strength and performance of Recovery Products, slings, rigging hardware and/or protection is affected by use, wear and/or damage. It is critically important that users employ a three stage inspection procedure: Initial, Frequent and Periodic, performed by
a qualified person
.

If damage is identified during an inspection, damaged items must be immediately removed from service and not be returned until approved by a qualified person.

You may have encountered removal from service criteria for specific rope slings and rigging hardware permitting continued use at an acceptable level of wear and/or damage, provided it does not exceed specific limits. Quantifying an acceptable level of loss based on the original size may be difficult, especially in the field. Always consider the cost of failure and determine if the use of any item with “acceptable levels” of damage is worth the risk, given the potentially damaging and/or deadly consequences. Always ask yourself, “What’s the cost of failure?”

Visual inspection cannot accurately determine the residual strength of Recovery Products, slings, rigging hardware and/or protection. Contact your Lift-It® professional for more information on inspection training. A viable inspection program not only saves lives, but will enable personnel to make informed decisions that will enhance safety and Recovery Product performance.

Read and understand all product and warning information provided in this brochure, included with all products,
contained in our catalog, viewed at www.lift-it.com/product-warnings-and-information or scan this QR code
to link to our product warnings page:

Always follow OSHA, MSHA, ASME, federal, state, provincial, industry, association, corporate, job site specific, insurance and manufacturer warnings and guidelines.

Removal from Service Criteria

The following removal criteria must be used when inspecting Lift-It® Recovery Products. Immediately remove from service if any of these conditions are present:

  • Missing or illegible Recovery Product identification.

Recovery Products must be identified or labeled with the following information:

  • name or trademark of manufacturer, or if repaired, the entity performing repairs
  • manufacturer’s code or stock number
  • rated load for at least one hitch type and the angle upon which it is based (i.e., straight-line / vertical)
  • type of fiber material
  • SLBS (Straight Line Break Strength) and Design Factors; 5:1 & 3:1
  • Cuts, gouges, areas of extensive fiber breakage along the length and abraded areas on the rope.
  • Any damage that is estimated to have reduced the effective diameter of the rope. (What’s the cost of failure?).
  • Uniform fiber breakage along the major part of the length of the rope such that the entire rope appears covered with fuzz or whiskers.
  • Inside the rope, fiber breakage, fused or melted fiber (observed by prying or twisting to open the strands) involving damage of the fiber in any strand or the rope as a whole. (What’s the cost of failure?).
  • Discoloration, brittle fibers and hard or stiff areas that may indicate chemical damage, ultraviolet damage or heat damage.
  • Dirt and grit in the interior of the rope structure.
  • Foreign matter that has permeated the rope and makes it difficult to handle and may attract and hold grit.
  • Kinks or distortion in the rope structure, particularly if caused by forcibly pulling on loops (known as hockles).
  • Melted, hard, or charred areas. (What’s the cost of failure?).
  • Poor condition of thimbles or other components manifested by corrosion, cracks, distortion, sharp edges, or localized wear.
  • Modifications to any item done by someone other than the Original Equipment Manufacturer (OEM) shall not be done.
  • Lock Stitch Thread and/or Whipping Thread that is broken, cut or damaged.
  • Damaged Eye Splices: Broken Strands at the leg juncture, surface wear in the eye, flattening, and/or splice slippage.
  • Other conditions including visible damage that cause doubt as to the continued use of the Recovery Products
  • For slings, removal criteria as stated in ASME B30.9.
  • For hooks, removal criteria as stated in ASME B30.10.
  • For rigging hardware, removal criteria as stated in ASME B30.26.

Qualified person: A person, who by possession of a recognized degree or certificate of professional standing in an applicable field, or who, by extensive knowledge, training and experience, has successfully demonstrated the ability to solve or resolve problems relating to the subject matter and work.

PROLINE12TM UHMPE Adjustable Rope Slings are labeled with the information currently required by the various regulatory agencies. Please review the User Guide that accompanies each PROLINE12TM UHMPE Adjustable Rope Sling for information on proper use and inspection.

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Made in USA Yes
Diameter (inches) 1-1/2"
Choker WLL (Lbs) 30,900
Vertical WLL (Lbs) 44,200
90° Basket WLL (Lbs) 88,400
