Lift-It® Bridle Assemblies feature combinations of links, fabric eyes and hooks for the efficient handling of loads with fixed lifting pointts. Synthetic Bridle Assemblies are lightweight and easy to handle when compared to wire and chain bridles.
Lift-It® Bridle Assemblies feature hardware that is substantially larger than other manufacturers. We take into account not only the strength requirements, but the spatial relationship between sling attachment points and interfacing hardware.
Lift-It® Bridle Assembly capacities are lower than our competitors. (MLB3) Three Leg Bridle Assembly capacities are based upon 2-1/2 legs carrying the assigned capacity. (MLB4) Four Leg Bridle Assembly capacities are based on three legs carrying the assigned capacity.
Lower capacities and more expensive, larger hardware will never allow us to be the successful, low bidder. Our conservative approach is respected by conscientious users and appreciated by sophisticated purchasers. In this instance, spending more for less provides for increased safety and longer sling service.
Masterlinks are welded. Forged (non-welded) masterlinks are available upon request. All hooks are supplied with latches. Bottom fittings are placed in the same plane as the top lifting fixture, unless otherwise specified. All fittings are alloy steel and other types of materials and attachments are available.
|

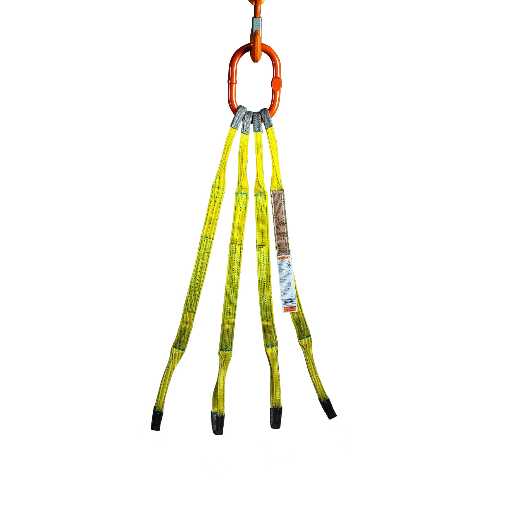

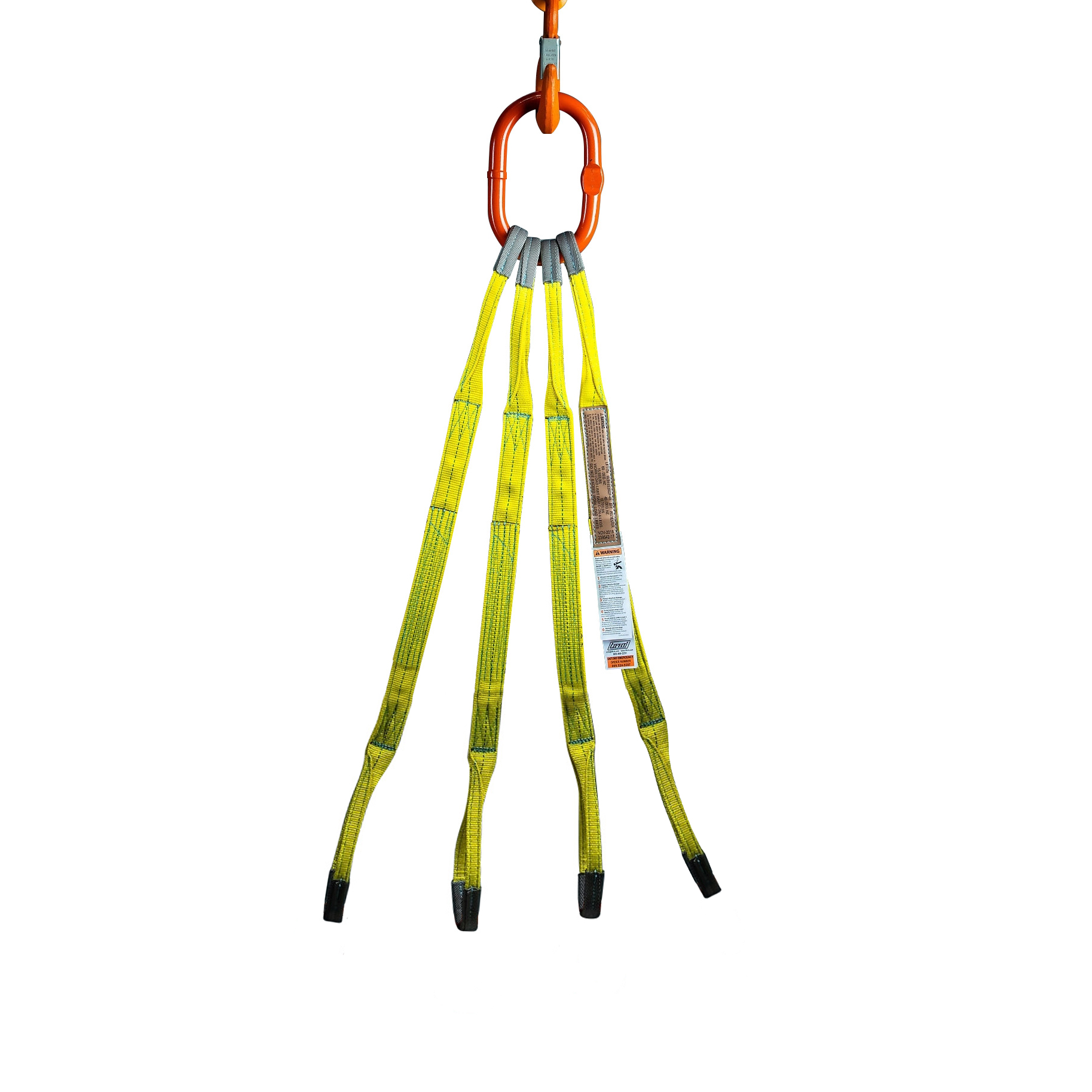

EYE & EYE
|
MULTI LEG BRIDLES
(MLB4)
|
4E 4L 4W
|
Stock Number
|
Web Width
|
Sling
Type
|
Web Ply
|
Work Load Limits (Lbs.) Horizontal Angle
|
Top
Master
Link
(Dia.)
|
Master
Sub
Assembly
(Diameter)
|
BOTTOM ATTACHMENTS
|
Sling Weight** (Lbs.)
|
Minimum
Sling
Length
(Ft.)
|
Eye Dimensions W" X L" (Code "E")
|
Hoist
Hook
(Tons) (Code "W)
|
Bottom
Link Diameter (Code "L")
|
|
|
Base
8 Ft.
|
Adder
Per Ft.
|
MLB4-EE2901P
|
1"
|
EE
|
2
|
8,300
|
6,700
|
1-1/4"
|
1"
|
1" X 12"
|
1.5T*
|
1/2"
|
13.62
|
.45
|
4
|
MLB4-EE2902P
|
2"
|
EE
|
2
|
15,500
|
12,700
|
1-1/4"
|
1-1/4"
|
1" X 12"
|
3T*
|
5/8"
|
17.70
|
.88
|
5
|
MLB4-EE2903P
|
3"
|
EE
|
2
|
23,000
|
18,700
|
1-3/4"
|
1-1/4"
|
1-1/2" X 12"
|
5T*
|
3/4"
|
29.28
|
1.40
|
5
|
MLB4-EE2904P
|
4"
|
EE
|
2
|
29,600
|
24,100
|
2"
|
1-1/2"
|
1-1/2" X 14"
|
N/A
|
3/4"
|
54.00
|
1.76
|
8
|
MLB4-EE4903P
|
3"
|
EE
|
4
|
44,100
|
36,000
|
2"
|
2"
|
1-1/2 X 18"
|
N/A
|
1"
|
66.00
|
2.80
|
10
|
MLB4-EE4904P
|
4"
|
EE
|
4
|
59,200
|
48,300
|
2-1/2"
|
2-1/4"
|
2" X 18"
|
N/A
|
1"
|
115.00
|
3.50
|
10
|
* Web Hook available, specify order code "W"
**Bottom attachment weight must be added to base weight for total sling weight. Base (8ft) assembly weights and minimum lengths are based upon Masterlinks. Weights and minimum lengths for Master Sub Assemblies must be calculated.
Available in either nylon or polyester webbing. Polyester comes standard on all models.
Polyester webbing is available in (9) heavy web class only.
For Polyester Max Edge™ webbing add letters
"PME" to Stock Number. (Example: MLB2-EE2902-PME-HH)
DO NOT EXCEED WORK LOAD LIMITS
