Gas Cylinder Cradles - CG 20A

Name: Gas Cylinder Cradles - CG 20A
SKU: CG 20A
Price: 1080.52 USD
Availability: InStock

Manufacturer: Lift-It

Lift-It® Gas Cylinder Cradles are made from polyester webbing and rated at 1,000 Lbs. Work Load Limit. The cylinder base rests securely in a double ply, leather lined, nylon cradle while the bottle neck loop presses against the cylinder neck, securely holding the cylinder.

More...

SKU: CG 20A

$1,080.52

Qty:

i h

Fabrication Time: 8-11 days

Made in the USA

Overview
Specifications
Product Resources
Contact Us

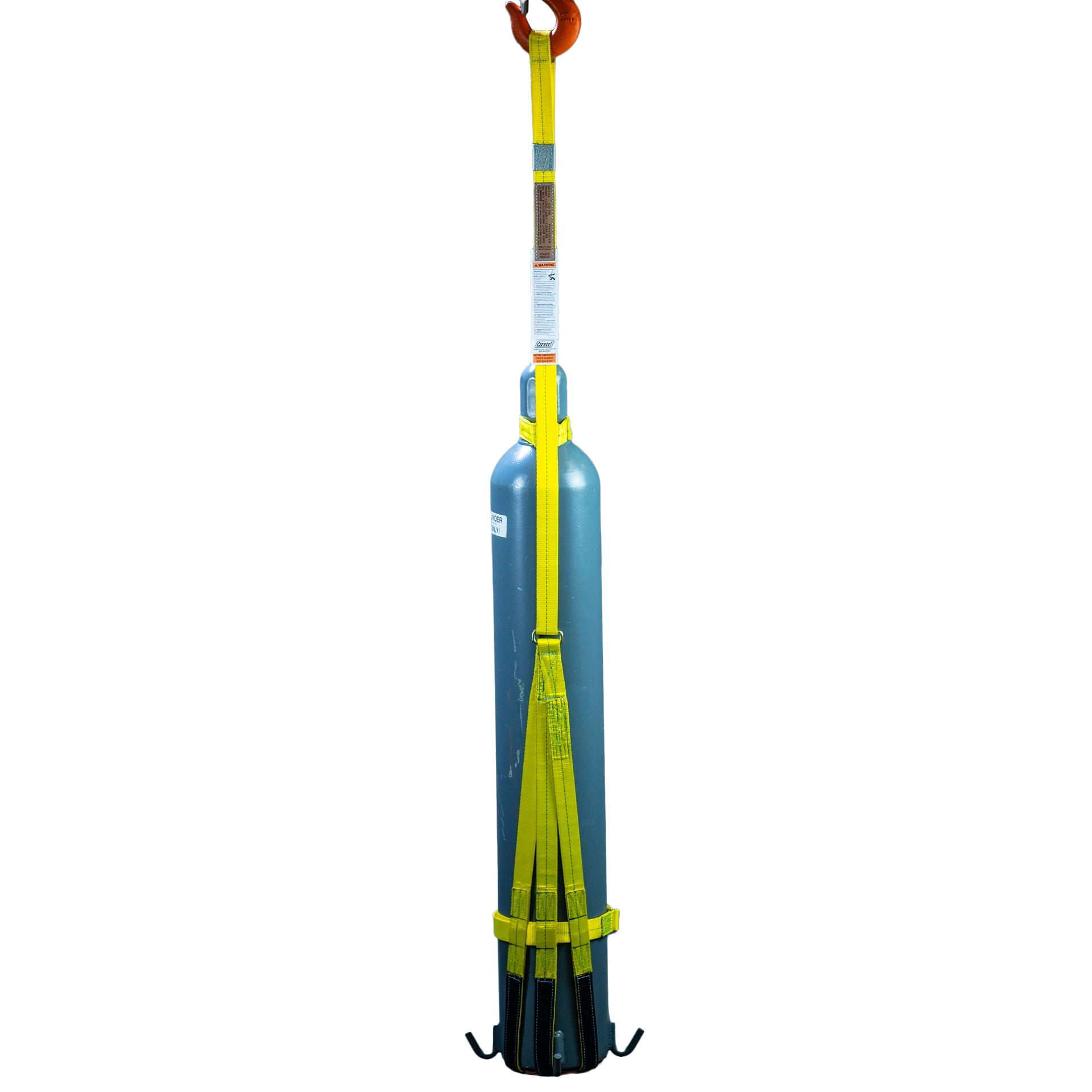

Lift-It^® Gas Cylinder Cradles are made from polyester webbing and rated at 1,000 Lbs. Work Load Limit. The cylinder base rests securely in a double ply, leather lined, nylon cradle while the bottle neck loop presses against the cylinder neck, securely holding the cylinder. A tightening band secures the cylinder to the assembly legs making transportation easy and efficient.

CG 10A adjusts to accommodate 9 to 20 inch (Diameter) by 40 to 65 inch (High) T, K and S cylinders.

CG 20A adjusts and conveniently handles oxygen and acetylene cylinders in tandem.

		DIMENSIONAL INFORMATION
STOCK NUMBER	DESCRIPTION	DIAMETER	CYLINDER HEIGHT
CG 10A	SINGLE OXYGEN	9" to 20"	40" - 64"
CG 20A	DOUBLE	9" OXYGEN	46" - 54"
CG 20A	OXYGEN OR ACETYLENE	13" ACETYLENE	38" - 46"
CG 30A	SINGLE AMMONIA	13" to 16"	40" - 54"

Do not directly expose Gas Cylinder Cradles
to weld spatter and sparks.
Protective measures must be taken.

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.

Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<

Products specifications

Made in USA	Yes
