Picture of 4" Wide Quad Leg - Eye & Eye Sling Bridle | 2 Ply Picture of 4" Wide Quad Leg - Eye & Eye Sling Bridle | 2 Ply Picture of 4" Wide Quad Leg - Eye & Eye Sling Bridle | 2 Ply Picture of 4" Wide Quad Leg - Eye & Eye Sling Bridle | 2 Ply

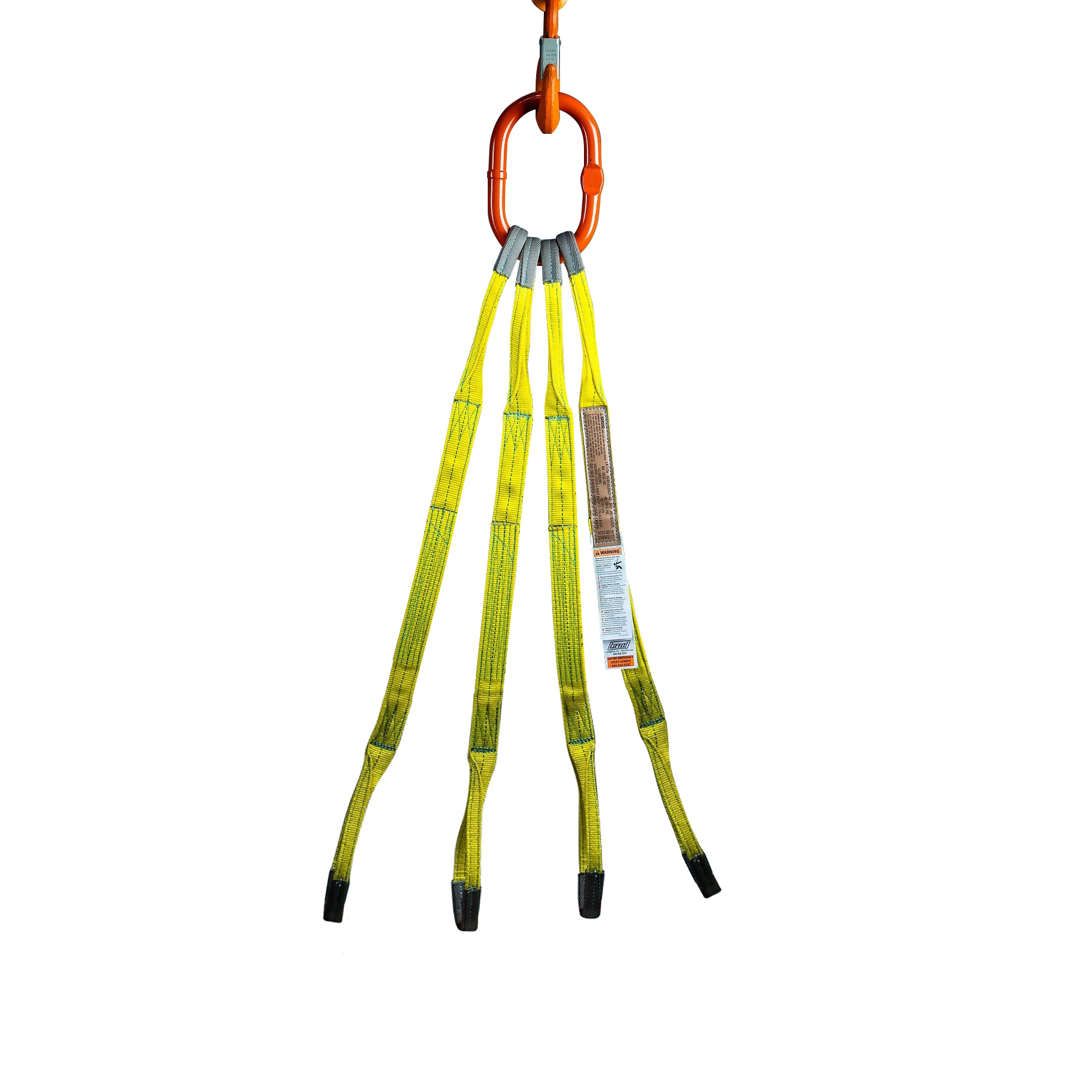

4" Wide Quad Leg - Eye & Eye Sling Bridle | 2 Ply

Manufacturer: Lift-It
(MLB4) Four Leg Bridle Assembly capacities are based on three legs carrying the assigned capacity. If a 200% load test is required on your slings please contact our sales team prior to ordering, 909-469-2251.
More...
SKU: MLB4-EE2904P
*
*
60° Horiz Angle WLL (Lbs) 29,600
45° Horiz Angle WLL (Lbs) 24,100
$0.00
i h
Fabrication Time: 3-5 days
Made in the USA

Lift-It® Bridle Assemblies feature combinations of links, fabric eyes and hooks for the efficient handling of loads with fixed lifting pointts. Synthetic Bridle Assemblies are lightweight and easy to handle when compared to wire and chain bridles.

Lift-It® Bridle Assemblies feature hardware that is substantially larger than other manufacturers. We take into account not only the strength requirements, but the spatial relationship between sling attachment points and interfacing hardware.

Lift-It® Bridle Assembly capacities are lower than our competitors. (MLB3) Three Leg Bridle Assembly capacities are based upon 2-1/2 legs carrying the assigned capacity. (MLB4) Four Leg Bridle Assembly capacities are based on three legs carrying the assigned capacity.



Lower capacities and more expensive, larger hardware will never allow us to be the successful, low bidder. Our conservative approach is respected by conscientious users and appreciated by sophisticated purchasers. In this instance, spending more for less provides for increased safety and longer sling service.

Masterlinks are welded. Forged (non-welded) masterlinks are available upon request. All hooks are supplied with latches. Bottom fittings are placed in the same plane as the top lifting fixture, unless otherwise specified. All fittings are alloy steel and other types of materials and attachments are available.





EYE & EYE

MULTI
LEG
BRIDLES

(MLB4)


      4E                 4L                 4W

Stock Number

Web Width

Sling

Type

Web Ply

Work Load Limits
(Lbs.)
Horizontal Angle

Top

Master

Link

(Dia.)

Master

Sub

Assembly

(Diameter)

BOTTOM ATTACHMENTS

Sling Weight** (Lbs.)

Minimum

Sling

Length

(Ft.)

Eye Dimensions W" X L" (Code "E")

Hoist

Hook

(Tons) (Code "W)

Bottom

Link Diameter (Code "L")



Base

8 Ft.

Adder

Per Ft.

MLB4-EE2901P

1"

EE

2

8,300

6,700

1-1/4"

1"

1" X 12"

1.5T*

1/2"

13.62

.45

4

MLB4-EE2902P

2"

EE

2

15,500

12,700

1-1/4"

1-1/4"

1" X 12"

3T*

5/8"

17.70

.88

5

MLB4-EE2903P

3"

EE

2

23,000

18,700

1-3/4"

1-1/4"

1-1/2" X 12"

5T*

3/4"

29.28

1.40

5

MLB4-EE2904P

4"

EE

2

29,600

24,100

2"

1-1/2"

1-1/2" X 14"

N/A

3/4"

54.00

1.76

8

MLB4-EE4903P

3"

EE

4

44,100

36,000

2"

2"

1-1/2 X 18"

N/A

1"

66.00

2.80

10

MLB4-EE4904P

4"

EE

4

59,200

48,300

2-1/2"

2-1/4"

2" X 18"

N/A

1"

115.00

3.50

10

* Web Hook available, specify order code "W"

**Bottom attachment weight must be added to base weight for total sling weight. Base (8ft) assembly weights and minimum lengths are based upon Masterlinks. Weights and minimum lengths for Master Sub Assemblies must be calculated.

 Available in either nylon or polyester webbing. Polyester comes standard on all models.
Polyester webbing is available in (9) heavy web class only.
For Polyester Max Edge™ webbing add letters
"PME" to Stock Number. (Example: MLB2-EE2902-PME-HH)



DO NOT EXCEED WORK LOAD LIMITS

Click Here for Attachment Specifications

All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
Warning See 'Product Resources' tab above for Warning Information

PROP 65 WARNING

Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov

>> Click here for more details <<
Products specifications
Made in USA Yes
Width (inches) 4"
Ply 2
60° Horiz Angle WLL (Lbs) 29,600
45° Horiz Angle WLL (Lbs) 24,100
